125MHz晶振,3225晶振,3.3V,KC3225A125.000C30E00,50PPM,京瓷晶振

产品分类：晶振规格书

特点：小型陶瓷封装高度可靠,带缝焊CMOS输出电源电压Vcc=25Vge可用+25x10可用

订购热线：0755-33533774

跟此产品相关的产品

: 125MHz有源晶振KC3225A125.000C30E00 3.3V ±50ppm 3225封装京瓷晶体振荡器

产品详情

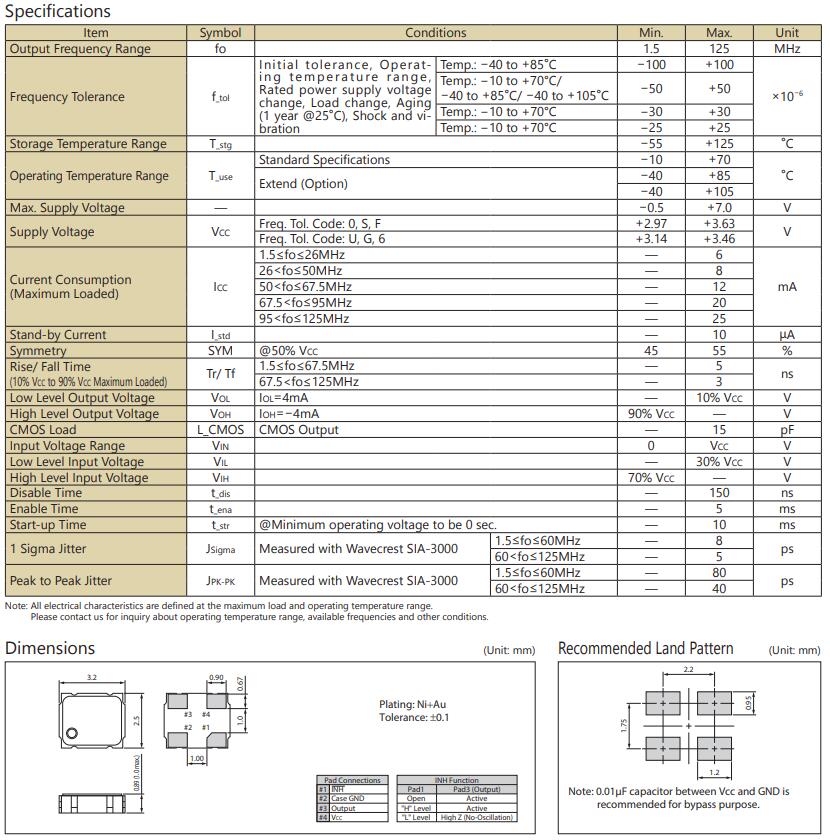

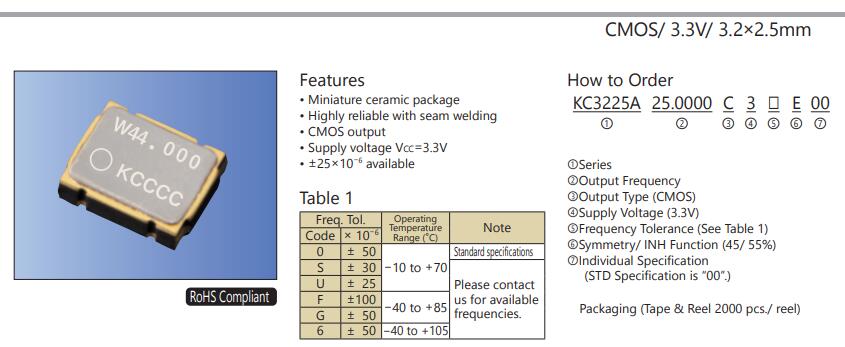

KC3225A

料号	频率	工作温度	电压	精度
KC3225A125.000C30E00	125MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A80.0000C3GE00	80MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A14.3182C3GE00	14.3182MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A60.0000C3GE00	60MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A1.84320C3GE00	1.8432MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A10.0000C3GE00	10MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A54.0000C30E00	54MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A50.0000C30E00	50MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A25.0000C30E00	25MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A16.0000C3GE00	16MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A19.2000C3GE00	19.2MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A48.0000C30E00	48MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A100.000C3GE00	100MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A40.0000C3GE00	40MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A4.00000C3GE00	4MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A27.0000C30E00	27MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A12.0000C3GE00	12MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A27.0000C3GE00	27MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A7.37280C3GE00	7.3728MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A72.0000C30E00	72MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A24.5760C30E00	24.576MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A24.5760C3GE00	24.576MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A20.0000C3GE00	20MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A12.0000C30E00	12MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A8.00000C3GE00	8MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A49.1520C30E00	49.152MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A50.0000C3GE00	50MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A30.0000C30E00	30MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A24.0000C3GE00	24MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A106.250C30E00	106.25MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A40.0000C30E00	40MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A25.0000C3GE00	25MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A106.250C3GE00	106.25MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A100.000C30E00	100MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A3.68640C3GE00	3.6864MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A18.4320C3GE00	18.432MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A48.0000C3GE00	48MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A14.3182C30E00	14.3182MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A44.0000C3GE00	44MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A75.0000C30E00	75MHz	-10°C ~ 70°C	3.3V	±50ppm
KC3225A30.0000C3GE00	30MHz	-40°C ~ 85°C	3.3V	±50ppm
KC3225A125.000C3GE00	125MHz	-40°C ~ 85°C	3.3V	±50ppm
