当前位置:首页 » 加科电子产品中心 » 晶振规格书 » 规格书 » 16.384MHz有源晶振,SG-615P,Q336150110770爱普生晶振

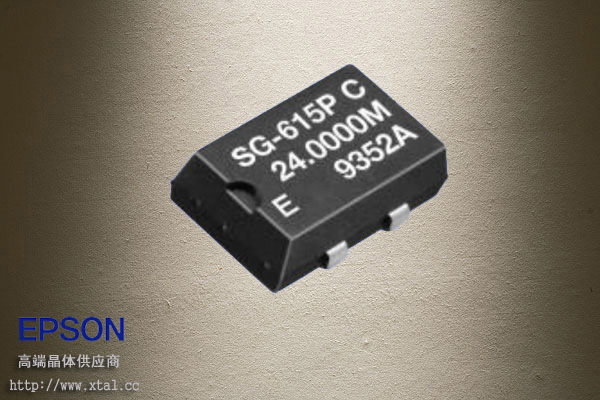

16.384MHz有源晶振,SG-615P,Q336150110770爱普生晶振
prevnext
查看全部大图

16.384MHz有源晶振,SG-615P,Q336150110770爱普生晶振

产品分类： 规格书

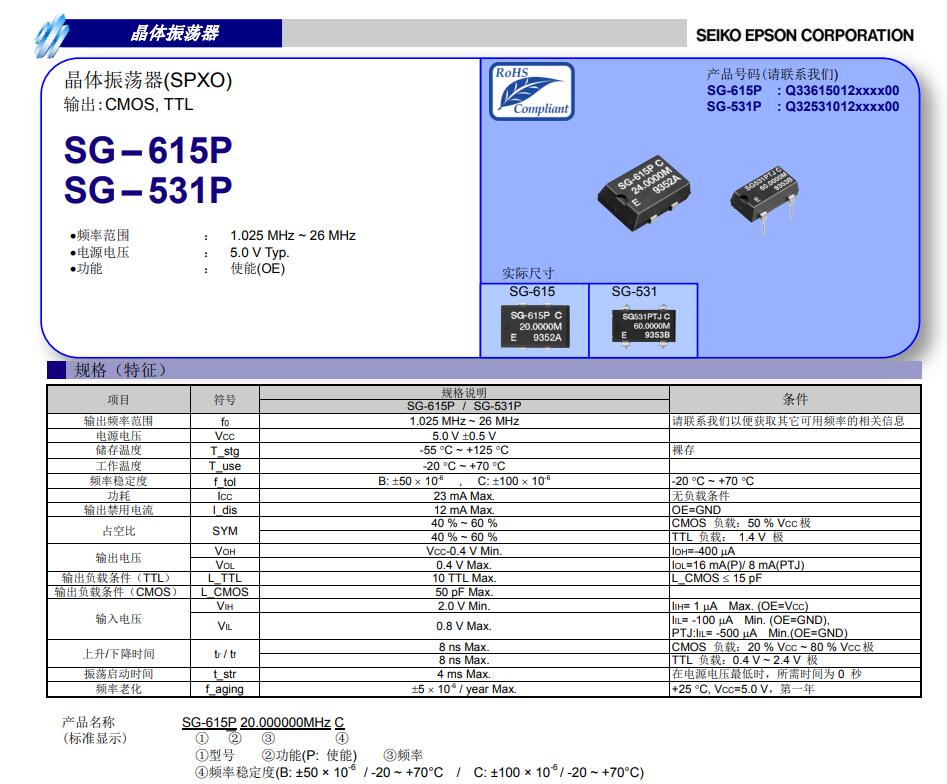

    频率范围:1.025MHz~26 MHz,电源电压:5.0VTyp.功能:使能(OE)
    订购热线：0755-33533774
    跟此产品相关的产品
    产品详情

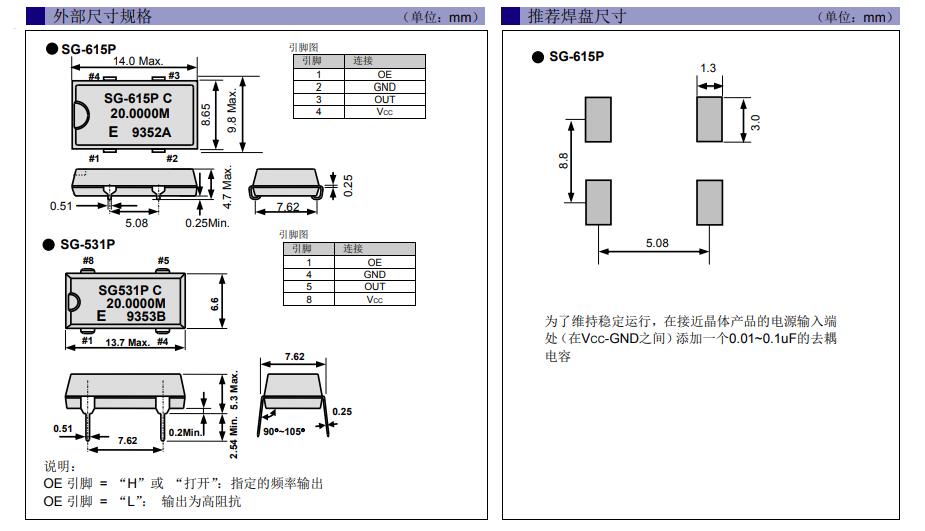

      频率范围:1.025MHz~26MHz,电源电压:5.0VTyp.功能:使能(OE),Q336150110770晶振尺寸14x9.8x4.7mm。

      爱普生晶振SG-615P编码大全


      料号供应商频率电压工作温度精度型号
      Q336150120170加科晶体电子1.125MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110793加科晶体电子1.228MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110739加科晶体电子1.415MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110712加科晶体电子1.47456MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110184加科晶体电子1.536MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120036加科晶体电子1.536MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120049加科晶体电子1.544MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120050加科晶体电子1.544MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120057加科晶体电子1.8432MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120268加科晶体电子1.8432MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110479加科晶体电子1.96608MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120314加科晶体电子1.9968MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110281加科晶体电子2MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120032加科晶体电子2MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110100加科晶体电子2.048MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120099加科晶体电子2.048MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110808加科晶体电子2.22MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120018加科晶体电子2.4576MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120010加科晶体电子2.5MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110041加科晶体电子3MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110042加科晶体电子3MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110035加科晶体电子3.072MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110762加科晶体电子3.1457MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110744加科晶体电子3.2MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110499加科晶体电子3.276MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110116加科晶体电子3.2768MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110824加科晶体电子3.39MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110201加科晶体电子3.5712MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110782加科晶体电子3.5795MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120047加科晶体电子3.579545MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110054加科晶体电子3.6864MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120055加科晶体电子3.6864MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110176加科晶体电子4MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120030加科晶体电子4MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110090加科晶体电子4.096MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120091加科晶体电子4.096MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110140加科晶体电子4.194304MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110827加科晶体电子4.61MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110812加科晶体电子4.8MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110016加科晶体电子4.9152MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120017加科晶体电子4.9152MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110007加科晶体电子5MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120008加科晶体电子5MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110065加科晶体电子5.0688MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110486加科晶体电子5.1784MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120040加科晶体电子6MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120034加科晶体电子6.144MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110315加科晶体电子6.4MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110468加科晶体电子6.66MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110462加科晶体电子6.94MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110820加科晶体电子7MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110490加科晶体电子7.159090MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110051加科晶体电子7.3728MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120052加科晶体电子7.3728MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110105加科晶体电子7.68MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110106加科晶体电子7.68MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110244加科晶体电子8MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120028加科晶体电子8MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120115加科晶体电子8.064MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110242加科晶体电子8.192MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120087加科晶体电子8.192MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110023加科晶体电子9.216MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110214加科晶体电子9.216MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120060加科晶体电子9.6MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110133加科晶体电子9.83MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110295加科晶体电子9.8304MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120014加科晶体电子9.8304MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110779加科晶体电子10MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120005加科晶体电子10MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110823加科晶体电子10.025MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110066加科晶体电子10.24MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110102加科晶体电子10.752MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120250加科晶体电子11MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110431加科晶体电子11.034482MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110222加科晶体电子11.059MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110780加科晶体电子11.0592MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120067加科晶体电子11.0592MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110141加科晶体电子11.2896MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110219加科晶体电子11.2896MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120037加科晶体电子12MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120788加科晶体电子12MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110221加科晶体电子12.14685MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110273加科晶体电子12.21MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110769加科晶体电子12.288MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120033加科晶体电子12.288MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110190加科晶体电子12.352MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110207加科晶体电子12.352MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110094加科晶体电子12.5MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120095加科晶体电子12.5MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120083加科晶体电子12.8MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110814加科晶体电子12.88MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110349加科晶体电子13.0909MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110743加科晶体电子13.56MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120422加科晶体电子13.56MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110229加科晶体电子14MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110807加科晶体电子14.285MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110216加科晶体电子14.318MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120044加科晶体电子14.31818MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120045加科晶体电子14.31818MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110363加科晶体电子14.368MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110785加科晶体电子14.5MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120069加科晶体电子14.7456MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120070加科晶体电子14.7456MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110048加科晶体电子15MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110107加科晶体电子15.36MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110108加科晶体电子15.36MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120697加科晶体电子16MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120758加科晶体电子16MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110059加科晶体电子16.128MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110072加科晶体电子16.257MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110822加科晶体电子16.38MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110074加科晶体电子16.384MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110770加科晶体电子16.384MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110144加科晶体电子16.5MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110209加科晶体电子16.5MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110825加科晶体电子16.55172MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120243加科晶体电子16.552MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110205加科晶体电子16.64MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110142加科晶体电子16.666MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110266加科晶体电子16.6666MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120089加科晶体电子16.6667MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110121加科晶体电子16.67MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120674加科晶体电子16.777MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110457加科晶体电子17.734475MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110482加科晶体电子17.7345MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120076加科晶体电子18MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110020加科晶体电子18.432MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120021加科晶体电子18.432MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110119加科晶体电子19MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120061加科晶体电子19.2MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110125加科晶体电子19.5MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120011加科晶体电子19.6608MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120012加科晶体电子19.6608MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110179加科晶体电子19.968MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120001加科晶体电子20MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120772加科晶体电子20MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120149加科晶体电子20.2752MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110097加科晶体电子20.48MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120098加科晶体电子20.48MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110826加科晶体电子20.72MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110792加科晶体电子20.945MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110131加科晶体电子21MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110783加科晶体电子21.4MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120169加科晶体电子21.818MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110084加科晶体电子22.1184MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120085加科晶体电子22.1184MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110220加科晶体电子22.4MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110137加科晶体电子22.5792MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120062加科晶体电子24MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120673加科晶体电子24MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120763加科晶体电子24MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110262加科晶体电子24.0024MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110350加科晶体电子24.192MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150110512加科晶体电子24.2937MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110111加科晶体电子24.576MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110129加科晶体电子24.704MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110352加科晶体电子24.992MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120077加科晶体电子25MHz4.5to5.5V20°C+70°C 50PPMSG-615P
      Q336150120774加科晶体电子25MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150120093加科晶体电子25.175MHz4.5to5.5V20°C+70°C 100PPMSG-615P
      Q336150110127加科晶体电子26MHz4.5to5.5V20°C+70°C 100PPMSG-615P

      SG-615P

      SG-615P
