石英振荡器

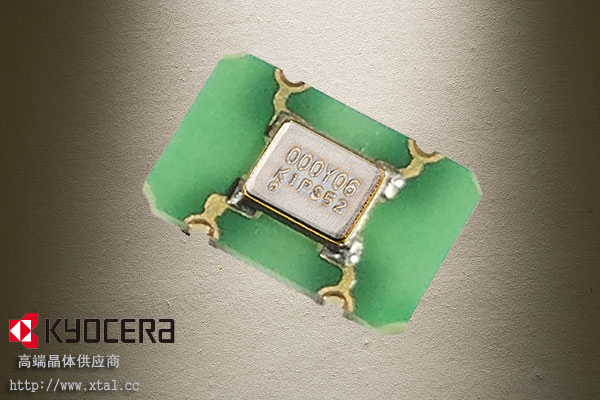

KC5032Z

产品分类: 京瓷晶振
    特征:频率范围0.5至170MHz,CMOS输出交付周期短,耐热性高达+125°C应用:消费者/网络/工业/娱乐。
    订购热线:0755-33533774

      KC2016Z

      KC2016Z

      KC2016Z

      料号型号频率最低温度最高温度精度电压
      KC5032Z16.0000C1GX00KC5032Z16MHz-4085±50ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C14Y00KC5032Z24MHz-40105±20ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C15Y00KC5032Z24MHz-40105±30ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C16Y00KC5032Z24MHz-40105±50ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1GY00KC5032Z24MHz-4085±50ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1HY00KC5032Z24MHz-4085±30ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1JY00KC5032Z24MHz-4085±25ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1KY00KC5032Z24MHz-4085±20ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1LY00KC5032Z24MHz-4085±15ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1SY00KC5032Z24MHz-1070±30ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1UY00KC5032Z24MHz-1070±25ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1WY00KC5032Z24MHz-1070±20ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1XY00KC5032Z24MHz-40125±100ppm1.8V,2.5V,3.3V
      KC5032Z24.0000C1ZY00KC5032Z24MHz-40125±50ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C14Y00KC5032Z25MHz-40105±20ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C15Y00KC5032Z25MHz-40105±30ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C16Y00KC5032Z25MHz-40105±50ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1GY00KC5032Z25MHz-4085±50ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1HY00KC5032Z25MHz-4085±30ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1JY00KC5032Z25MHz-4085±25ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1KY00KC5032Z25MHz-4085±20ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1LY00KC5032Z25MHz-4085±15ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1SY00KC5032Z25MHz-1070±30ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1UY00KC5032Z25MHz-1070±25ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1WY00KC5032Z25MHz-1070±20ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1XY00KC5032Z25MHz-40125±100ppm1.8V,2.5V,3.3V
      KC5032Z25.0000C1ZY00KC5032Z25MHz-40125±50ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C14Y00KC5032Z50MHz-40105±20ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C15Y00KC5032Z50MHz-40105±30ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C16Y00KC5032Z50MHz-40105±50ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1GY00KC5032Z50MHz-4085±50ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1HY00KC5032Z50MHz-4085±30ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1JY00KC5032Z50MHz-4085±25ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1KY00KC5032Z50MHz-4085±20ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1LY00KC5032Z50MHz-4085±15ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1SY00KC5032Z50MHz-1070±30ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1UY00KC5032Z50MHz-1070±25ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1WY00KC5032Z50MHz-1070±20ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1XY00KC5032Z50MHz-40125±100ppm1.8V,2.5V,3.3V
      KC5032Z50.0000C1ZY00KC5032Z50MHz-40125±50ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C14Y00KC5032Z60MHz-40105±20ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C15Y00KC5032Z60MHz-40105±30ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C16Y00KC5032Z60MHz-40105±50ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1GY00KC5032Z60MHz-4085±50ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1HY00KC5032Z60MHz-4085±30ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1JY00KC5032Z60MHz-4085±25ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1KY00KC5032Z60MHz-4085±20ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1LY00KC5032Z60MHz-4085±15ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1SY00KC5032Z60MHz-1070±30ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1UY00KC5032Z60MHz-1070±25ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1WY00KC5032Z60MHz-1070±20ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1XY00KC5032Z60MHz-40125±100ppm1.8V,2.5V,3.3V
      KC5032Z60.0000C1ZY00KC5032Z60MHz-40125±50ppm1.8V,2.5V,3.3V

      京瓷晶振简介:

      京瓷晶振,全称日本KYOCERA京瓷晶振株式会社成立于1959年由稻盛和夫创办,是一家有着悠久发展历史的知名品牌晶振公司,该公司专注于研发生产石英晶体,有源晶振,温补晶振,差分晶振,压控晶振等元件,是业内领先的制造商之一,京瓷晶振始终如一地开发和制造晶体振荡器和晶体振荡器等产品,这些产品应用了人造石英的栽培特性,同时京瓷晶振向全球市场供应大量水晶产品,为即将到来的智能物联网时代的发展做出贡献。官网请访问http://www.xtal.cc
