石英振荡器

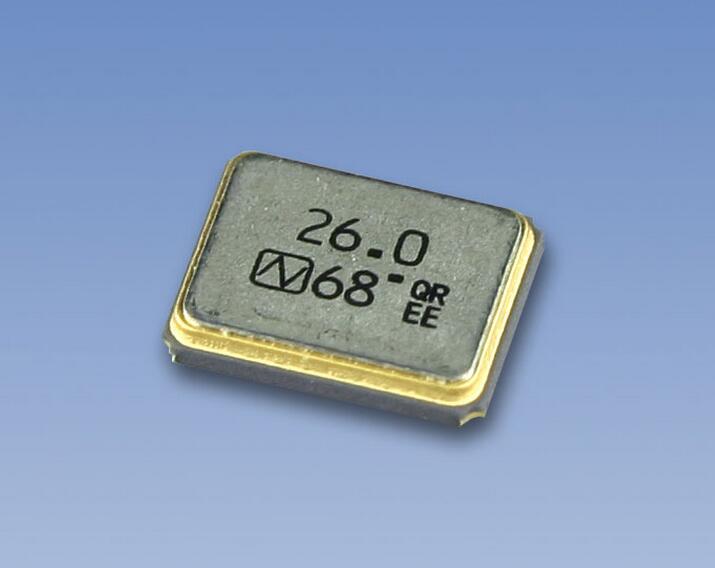

NX3225SA

产品分类: NDK晶振
    特征:最适用于Bluetooth、Wi-Fi等的短距离无线和智能手机、平板电脑等的基准时钟源。

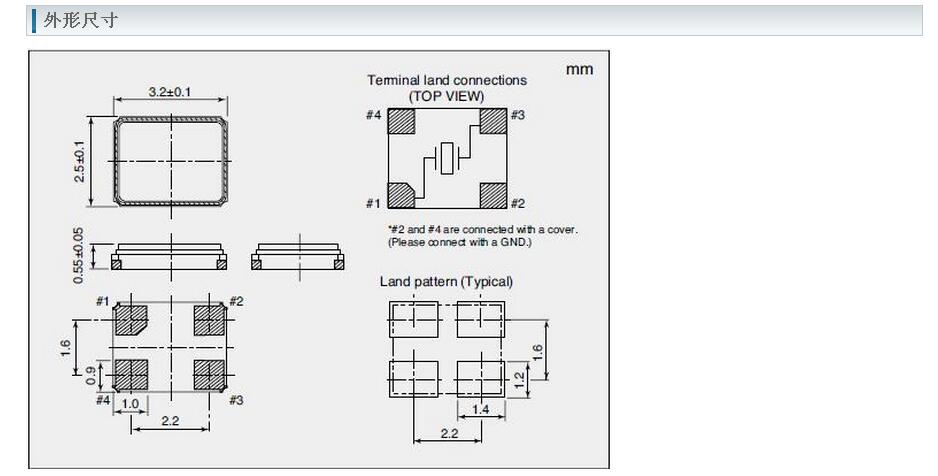

    小型、薄型 (3.2×2.5×0.55mm typ.) 。
    具有优良的耐环境特性,如耐热性、耐振性
    满足无铅焊接的回流温度曲线要求
    订购热线:0755-33533774
    7M27000034
    7M27000034
    7M25000013
    7M25000013
    SCV-3225
    SCV-3225
    特征: 小型陶瓷封装/ 尺寸(3.2 - 2.5 - 0.9) 拉拔范围广低电流消耗数字电视调谐器/数字视频/ DVD / DSC

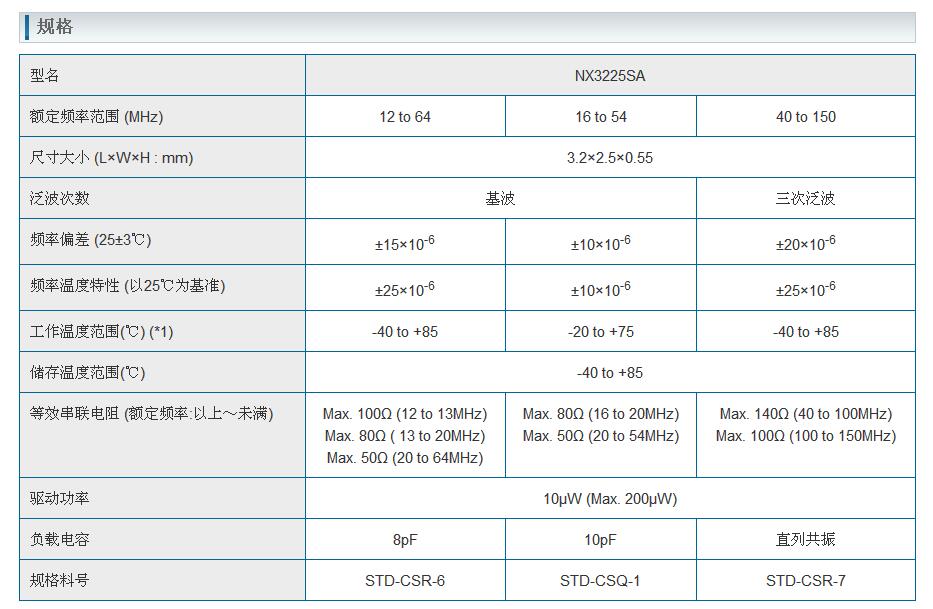

      NX3225SA晶振规格书

      NX3225SA晶振规格书

      汽车及温度:

      产品代号
      型号频率温度负载电容精度PPM
      NX3225SA-12.000M-STD-CRS-2NX3225SA12.000000MHz -40°C+125°C850
      NX3225SA-12.288M-STD-CRS-2NX3225SA12.288000MHz -40°C+125°C850
      NX3225SA-13.4118M-STD-CRS-2NX3225SA13.411800MHz -40°C+125°C850
      NX3225SA-13.560M-STD-CRS-2NX3225SA13.560000MHz -40°C+125°C850
      NX3225SA-13.5672M-STD-CRS-2NX3225SA13.567200MHz -40°C+125°C850
      NX3225SA-14.000M-STD-CRS-2NX3225SA14.000000MHz -40°C+125°C850
      NX3225SA-14.31818M-STD-CRS-2NX3225SA14.318180MHz -40°C+125°C850
      NX3225SA-14.7456M-STD-CRS-2NX3225SA14.745600MHz -40°C+125°C850
      NX3225SA-15.000M-STD-CRS-2NX3225SA15.000000MHz -40°C+125°C850
      NX3225SA-16.000M-STD-CRS-2NX3225SA16.000000MHz -40°C+125°C850
      NX3225SA-16.384M-STD-CRS-2NX3225SA16.384000MHz -40°C+125°C850
      NX3225SA-17.63416M-STD-CRS-2NX3225SA17.634160MHz -40°C+125°C850
      NX3225SA-18.000M-STD-CRS-2NX3225SA18.000000MHz -40°C+125°C850
      NX3225SA-18.080M-STD-CRS-2NX3225SA18.080000MHz -40°C+125°C850
      NX3225SA-18.432M-STD-CRS-2NX3225SA18.432000MHz -40°C+125°C850
      NX3225SA-19.200M-STD-CRS-2NX3225SA19.200000MHz -40°C+125°C850
      NX3225SA-20.000M-STD-CRS-2NX3225SA20.000000MHz -40°C+125°C850
      NX3225SA-22.0586M-STD-CRS-2NX3225SA22.058600MHz -40°C+125°C850
      NX3225SA-24.000M-STD-CRS-2NX3225SA24.000000MHz -40°C+125°C850
      NX3225SA-24.5454M-STD-CRS-2NX3225SA24.545400MHz -40°C+125°C850
      NX3225SA-24.576M-STD-CRS-2NX3225SA24.576000MHz -40°C+125°C850
      NX3225SA-25.000M-STD-CRS-2NX3225SA25.000000MHz -40°C+125°C850
      NX3225SA-25.400M-STD-CRS-2NX3225SA25.400000MHz -40°C+125°C850
      NX3225SA-26.000M-STD-CRS-2NX3225SA26.000000MHz -40°C+125°C850
      NX3225SA-27.000M-STD-CRS-2NX3225SA27.000000MHz -40°C+125°C850
      NX3225SA-27.120M-STD-CRS-2NX3225SA27.120000MHz -40°C+125°C850
      NX3225SA-28.63636M-STD-CRS-2NX3225SA28.636360MHz -40°C+125°C850
      NX3225SA-30.000M-STD-CRS-2NX3225SA30.000000MHz -40°C+125°C850
      NX3225SA-32.000M-STD-CRS-2NX3225SA32.000000MHz -40°C+125°C850
      NX3225SA-40.000M-STD-CRS-2NX3225SA40.000000MHz -40°C+125°C850


      工业级温度:

      产品代号型号频率温度负载电容PF
      精度PPM
      NX3225SA-12.000M-STD-CSR-6NX3225SA12.000000MHz-40°C+85°C825PPM
      NX3225SA-12.288M-STD-CSR-6NX3225SA12.288000MHz-40°C+85°C825PPM
      NX3225SA-12.500M-STD-CSR-6NX3225SA12.500000MHz-40°C+85°C825PPM
      NX3225SA-13.000M-STD-CSR-6NX3225SA13.000000MHz-40°C+85°C825PPM
      NX3225SA-13.560M-STD-CSR-6NX3225SA13.560000MHz-40°C+85°C825PPM
      NX3225SA-14.31818M-STD-CSR-6NX3225SA14.318180MHz-40°C+85°C825PPM
      NX3225SA-14.7456M-STD-CSR-6NX3225SA14.745600MHz-40°C+85°C825PPM
      NX3225SA-16.000M-STD-CSR-6NX3225SA16.000000MHz-40°C+85°C825PPM
      NX3225SA-16.384M-STD-CSR-6NX3225SA16.384000MHz-40°C+85°C825PPM
      NX3225SA-16.9344M-STD-CSR-6NX3225SA16.934400MHz-40°C+85°C825PPM
      NX3225SA-18.432M-STD-CSR-6NX3225SA18.432000MHz-40°C+85°C825PPM
      NX3225SA-19.200M-STD-CSR-6NX3225SA19.200000MHz-40°C+85°C825PPM
      NX3225SA-20.000M-STD-CSR-6NX3225SA20.000000MHz-40°C+85°C825PPM
      NX3225SA-22.5792M-STD-CSR-6NX3225SA22.579200MHz-40°C+85°C825PPM
      NX3225SA-24.000M-STD-CSR-6NX3225SA24.000000MHz-40°C+85°C825PPM
      NX3225SA-24.576M-STD-CSR-6NX3225SA24.576000MHz-40°C+85°C825PPM
      NX3225SA-25.000M-STD-CSR-6NX3225SA25.000000MHz-40°C+85°C825PPM
      NX3225SA-26.000M-STD-CSR-6NX3225SA

      26.000000MHz

      -40°C+85°C825PPM
      NX3225SA-27.000M-STD-CSR-6NX3225SA27.000000MHz-40°C+85°C825PPM
      NX3225SA-27.120M-STD-CSR-6NX3225SA27.120000MHz-40°C+85°C825PPM
      NX3225SA-28.63636M-STD-CSR-6NX3225SA28.636360MHz-40°C+85°C825PPM
      NX3225SA-30.000M-STD-CSR-6NX3225SA30.000000MHz-40°C+85°C825PPM
      NX3225SA-32.000M-STD-CSR-6NX3225SA32.000000MHz-40°C+85°C825PPM
      NX3225SA-37.400M-STD-CSR-6NX3225SA37.400000MHz-40°C+85°C825PPM
      NX3225SA-40.000M-STD-CSR-6NX3225SA40.000000MHz-40°C+85°C825PPM
      NX3225SA-48.000M-STD-CSR-6NX3225SA48.000000MHz-40°C+85°C825PPM
      NX3225SA-50.000M-STD-CSR-6NX3225SA50.000000MHz-40°C+85°C825PPM
      NX3225SA-54.000M-STD-CSR-6NX3225SA54.000000MHz-40°C+85°C825PPM


      民用级温度:

      产品代号型号频率温度负载电容PF精度PPM

      NX3225SA-16.000M-STD-CSQ-1

      NX3225SA16.000000MHz-20°C+75°C1010PPM

      NX3225SA-16.384M-STD-CSQ-1

      NX3225SA16.384000MHz
      -20°C+75°C1010PPM

      NX3225SA-16.9344M-STD-CSQ-1

      NX3225SA16.934400MHz-20°C+75°C1010PPM

      NX3225SA-20.000M-STD-CSQ-1

      NX3225SA20.000000MHz-20°C+75°C1010PPM

      NX3225SA-22.5792M-STD-CSQ-1

      NX3225SA22.579200MHz-20°C+75°C1010PPM

      NX3225SA-24.000M-STD-CSQ-1

      NX3225SA24.000000MHz-20°C+75°C1010PPM

      NX3225SA-24.576M-STD-CSQ-1

      NX3225SA24.576000MHz-20°C+75°C1010PPM

      NX3225SA-25.000M-STD-CSQ-1

      NX3225SA25.000000MHz-20°C+75°C1010PPM

      NX3225SA-26.000M-STD-CSQ-1

      NX3225SA26.000000MHz-20°C+75°C1010PPM

      NX3225SA-27.000M-STD-CSQ-1

      NX3225SA27.000000MHz-20°C+75°C1010PPM

      NX3225SA-27.120M-STD-CSQ-1

      NX3225SA27.120000MHz-20°C+75°C1010PPM

      NX3225SA-28.63636M-STD-CSQ-1

      NX3225SA28.636360MHz-20°C+75°C1010PPM

      NX3225SA-30.000M-STD-CSQ-1

      NX3225SA30.000000MHz-20°C+75°C1010PPM

      NX3225SA-32.000M-STD-CSQ-1

      NX3225SA32.000000MHz-20°C+75°C1010PPM

      NX3225SA-37.400M-STD-CSQ-1

      NX3225SA37.400000MHz-20°C+75°C1010PPM

      NX3225SA-40.000M-STD-CSQ-1

      NX3225SA40.000000MHz-20°C+75°C1010PPM

      NX3225SA-50.000M-STD-CSQ-1

      NX3225SA50.000000MHz-20°C+75°C1010PPM

      NX3225SA-54.000M-STD-CSQ-1

      NX3225SA54.000000MHz-20°C+75°C1010PPM


      NDK晶振简介:

      企业理念

      要认识到作为世界一流厂家的使命和责任,要始终在行业中起带头作用。

      抢先取得社会需求,为客户提供高质量的服务。

      追求使用更方便、更稳定的发振源,创造更高的附加价值。

      不畏失败,向困难挑战,努力培养出能自我开发的人才。

      通过工作发扬人格。

      尊重个人,努力提高员工的生活水平。

      以与关系公司、供应商及包括地区社会在内的共同繁荣来回报投资者。

      致力于保护地球环境,担负起责任。官网请访问:http://www.xtal.cc
