介绍： NDK是日本电波工业株式会社的英文缩写（NIHON DEMPA KOGYO CO., LTD.），公司成立于1948年，是“世界第二大”石英晶体元器件生产企业。NDK以“顾客满意度 100%=品质第一”为理念，以成为石英晶体元器件业界的最大供应商为目标
主营产品：晶体,晶振,石英晶体振荡器、TCXO温补振荡器,VCXO压控振荡器,OCXO恒温晶振,晶体滤波器、声表面波滤波器和光学低通滤波器等，被广泛用于移动通信、固定通信、消费类电子、汽车电子、物联网,无线智能通讯产品等多个市场领域。

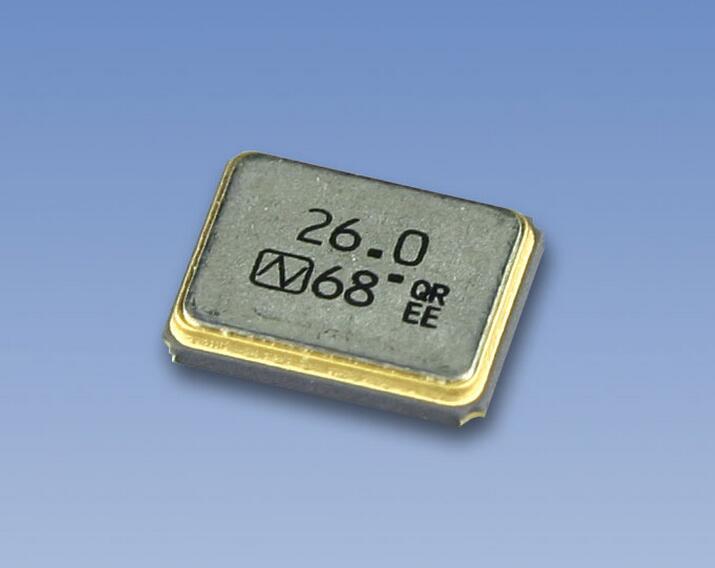

3225贴片晶振在电子产品领域中最常用的一种晶振封装，如今智能穿戴设备崛起，贴片晶振成为不可缺少的电子元器件之一。眼下智能穿戴力求超轻薄便于携带，使得内部元器件逐渐向超轻薄化的趋势发展。
加科电子将为大家呈现NX3225SA晶振订货型号：
汽车及温度：
产品代号 | 型号 | 频率 | 温度 | 负载电容 | 精度PPM |
NX3225SA-12.000M-STD-CRS-2 | NX3225SA | 12.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-12.288M-STD-CRS-2 | NX3225SA | 12.288000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-13.4118M-STD-CRS-2 | NX3225SA | 13.411800MHz | -40°C+125°C | 8 | 50 |
NX3225SA-13.560M-STD-CRS-2 | NX3225SA | 13.560000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-13.5672M-STD-CRS-2 | NX3225SA | 13.567200MHz | -40°C+125°C | 8 | 50 |
NX3225SA-14.000M-STD-CRS-2 | NX3225SA | 14.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-14.31818M-STD-CRS-2 | NX3225SA | 14.318180MHz | -40°C+125°C | 8 | 50 |
NX3225SA-14.7456M-STD-CRS-2 | NX3225SA | 14.745600MHz | -40°C+125°C | 8 | 50 |
NX3225SA-15.000M-STD-CRS-2 | NX3225SA | 15.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-16.000M-STD-CRS-2 | NX3225SA | 16.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-16.384M-STD-CRS-2 | NX3225SA | 16.384000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-17.63416M-STD-CRS-2 | NX3225SA | 17.634160MHz | -40°C+125°C | 8 | 50 |
NX3225SA-18.000M-STD-CRS-2 | NX3225SA | 18.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-18.080M-STD-CRS-2 | NX3225SA | 18.080000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-18.432M-STD-CRS-2 | NX3225SA | 18.432000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-19.200M-STD-CRS-2 | NX3225SA | 19.200000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-20.000M-STD-CRS-2 | NX3225SA | 20.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-22.0586M-STD-CRS-2 | NX3225SA | 22.058600MHz | -40°C+125°C | 8 | 50 |
NX3225SA-24.000M-STD-CRS-2 | NX3225SA | 24.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-24.5454M-STD-CRS-2 | NX3225SA | 24.545400MHz | -40°C+125°C | 8 | 50 |
NX3225SA-24.576M-STD-CRS-2 | NX3225SA | 24.576000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-25.000M-STD-CRS-2 | NX3225SA | 25.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-25.400M-STD-CRS-2 | NX3225SA | 25.400000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-26.000M-STD-CRS-2 | NX3225SA | 26.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-27.000M-STD-CRS-2 | NX3225SA | 27.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-27.120M-STD-CRS-2 | NX3225SA | 27.120000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-28.63636M-STD-CRS-2 | NX3225SA | 28.636360MHz | -40°C+125°C | 8 | 50 |
NX3225SA-30.000M-STD-CRS-2 | NX3225SA | 30.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-32.000M-STD-CRS-2 | NX3225SA | 32.000000MHz | -40°C+125°C | 8 | 50 |
NX3225SA-40.000M-STD-CRS-2 | NX3225SA | 40.000000MHz | -40°C+125°C | 8 | 50 |
工业级温度：
产品代号 | 型号 | 频率 | 温度 | 负载电容 | 精度PPM |
NX3225SA-12.000M-STD-CSR-6 | NX3225SA | 12.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-12.288M-STD-CSR-6 | NX3225SA | 12.288000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-12.500M-STD-CSR-6 | NX3225SA | 12.500000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-13.000M-STD-CSR-6 | NX3225SA | 13.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-13.560M-STD-CSR-6 | NX3225SA | 13.560000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-14.31818M-STD-CSR-6 | NX3225SA | 14.318180MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-14.7456M-STD-CSR-6 | NX3225SA | 14.745600MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-16.000M-STD-CSR-6 | NX3225SA | 16.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-16.384M-STD-CSR-6 | NX3225SA | 16.384000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-16.9344M-STD-CSR-6 | NX3225SA | 16.934400MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-18.432M-STD-CSR-6 | NX3225SA | 18.432000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-19.200M-STD-CSR-6 | NX3225SA | 19.200000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-20.000M-STD-CSR-6 | NX3225SA | 20.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-22.5792M-STD-CSR-6 | NX3225SA | 22.579200MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-24.000M-STD-CSR-6 | NX3225SA | 24.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-24.576M-STD-CSR-6 | NX3225SA | 24.576000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-25.000M-STD-CSR-6 | NX3225SA | 25.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-26.000M-STD-CSR-6 | NX3225SA | 26.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-27.000M-STD-CSR-6 | NX3225SA | 27.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-27.120M-STD-CSR-6 | NX3225SA | 27.120000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-28.63636M-STD-CSR-6 | NX3225SA | 28.636360MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-30.000M-STD-CSR-6 | NX3225SA | 30.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-32.000M-STD-CSR-6 | NX3225SA | 32.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-37.400M-STD-CSR-6 | NX3225SA | 37.400000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-40.000M-STD-CSR-6 | NX3225SA | 40.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-48.000M-STD-CSR-6 | NX3225SA | 48.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-50.000M-STD-CSR-6 | NX3225SA | 50.000000MHz | -40°C+85°C | 8 | 25PPM |
NX3225SA-54.000M-STD-CSR-6 | NX3225SA | 54.000000MHz | -40°C+85°C | 8 | 25PPM |
民用级温度：
产品代号 | 型号 | 频率 | 温度 | 负载电容 | 精度PPM |
NX3225SA-16.000M-STD-CSQ-1 | NX3225SA | 16.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-16.384M-STD-CSQ-1 | NX3225SA | 16.384000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-16.9344M-STD-CSQ-1 | NX3225SA | 16.934400MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-20.000M-STD-CSQ-1 | NX3225SA | 20.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-22.5792M-STD-CSQ-1 | NX3225SA | 22.579200MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-24.000M-STD-CSQ-1 | NX3225SA | 24.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-24.576M-STD-CSQ-1 | NX3225SA | 24.576000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-25.000M-STD-CSQ-1 | NX3225SA | 25.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-26.000M-STD-CSQ-1 | NX3225SA | 26.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-27.000M-STD-CSQ-1 | NX3225SA | 27.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-27.120M-STD-CSQ-1 | NX3225SA | 27.120000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-28.63636M-STD-CSQ-1 | NX3225SA | 28.636360MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-30.000M-STD-CSQ-1 | NX3225SA | 30.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-32.000M-STD-CSQ-1 | NX3225SA | 32.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-37.400M-STD-CSQ-1 | NX3225SA | 37.400000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-40.000M-STD-CSQ-1 | NX3225SA | 40.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-50.000M-STD-CSQ-1 | NX3225SA | 50.000000MHz | -20°C+75°C | 10 | 10PPM |
NX3225SA-54.000M-STD-CSQ-1 | NX3225SA | 54.000000MHz | -20°C+75°C | 10 | 10PPM |
加科电子能根据您产品的尺寸要求为您精选来自全球高端晶体品牌适合您产品的贴片晶振，如若需要晶振选型参考请直接拨打我们业务部的电话0755-33533774.感谢您耐心认真的看到了这里。。官网请访问：http://www.xtal.cc
