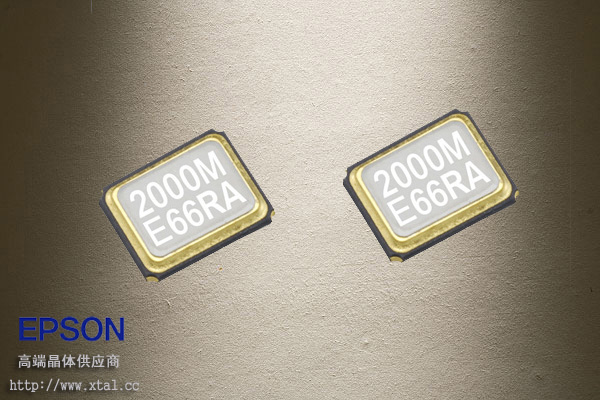

石英振荡器

FA-238

产品分类: EPSON晶振
    频率范围:16MHz ~ 60MHz
    外部尺寸规格:3.2 × 2.5 × 0.7mm
    谐波次数:基频
    应用
    :移动电话,蓝牙,无线-局域网ISM 频段电台广播,MPU时钟等
    订购热线:0755-33533774

    SG-3030JF
    SG-3030JF
    特征:
    频率范围:32.768 kHz
    外部尺寸规格 :7.1 × 5.1 × 1.5 mm
    C-MOS IC 的使用可降低功耗
    应用:数字消费类电子产品,PC/PC外围设备, 其他、微型电脑应用子CLK
    SG-3030LC
    SG-3030LC
    特征:
    频率范围:32.768 kHz
    外部尺寸规格 :3.6 × 2.8 × 1.2 mm
    C-MOS IC 的使用可降低功耗
    应用:数字消费类电子产品,PC/PC外围设备, 其他、微型电脑应用子CLK
    VCX95
    VCX95
    特征:
    尺寸(5.0×3.2×1.1)
    ceramic SMD封装
    seam密封
    low电流consumption and
    CMOS输出wide抽放
    set机顶盒/ MPEG / ADSL传输/频率

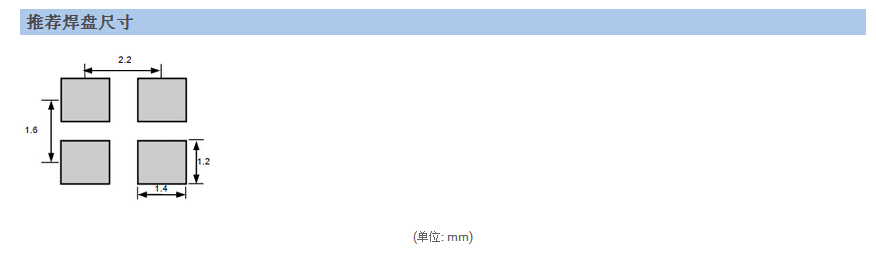

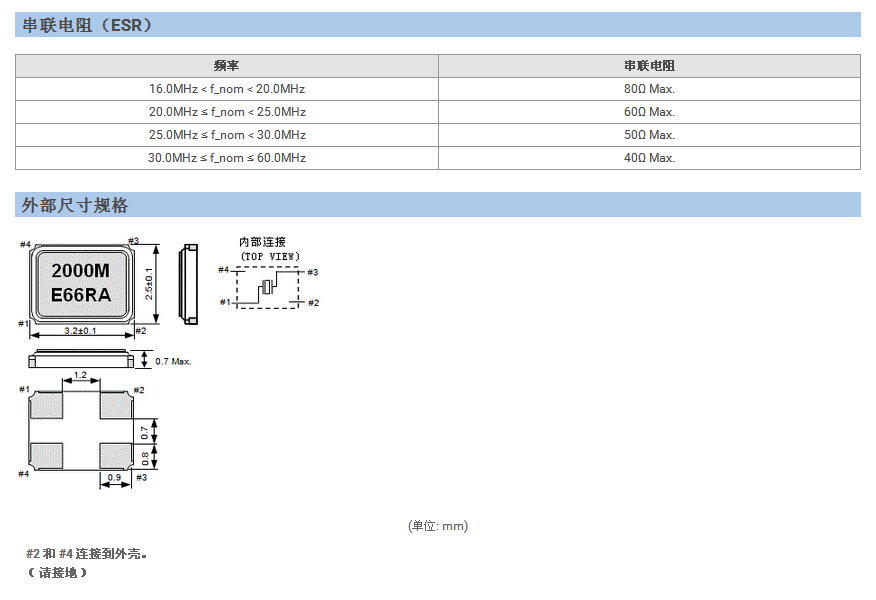

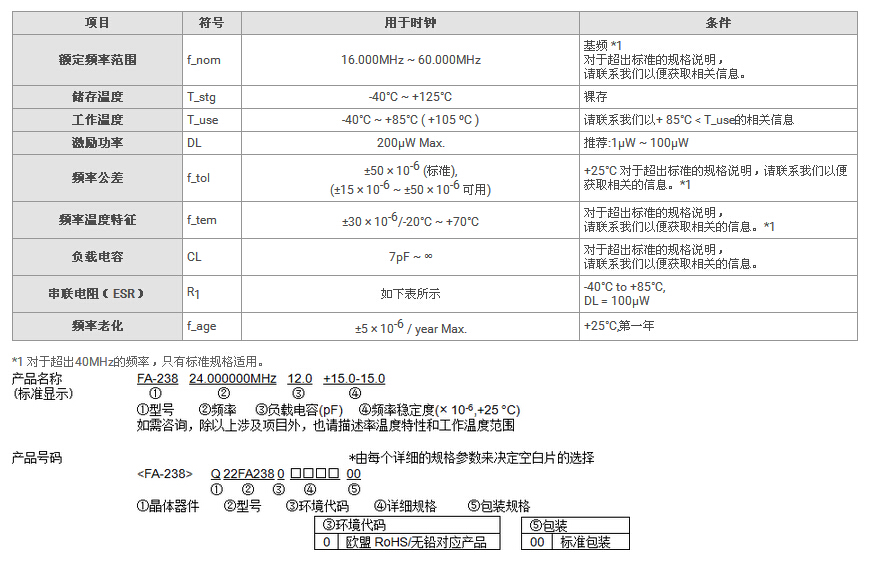

      FA-238晶振规格书

      FA-238晶振规格书

      FA-238晶振规格书

      爱普生FA-238同系列晶振型号有:

      产品代号型号频率
      工作温度负载电容PF精度PPM
      Q22FA23800001FA-23820.000000MHZ
      20+70°C12
      50
      Q22FA23800002FA-23820.000000MHZ20+70°C1850
      Q22FA23800011FA-23816.934400MHZ20+70°C1050
      Q22FA23800012FA-23824.553500MHZ
      20+70°C1050
      Q22FA23800013FA-23825.000000MHZ20+70°C1050
      Q22FA23800022FA-23827.000000MHZ20+70°C1250
      Q22FA23800027FA-23824.545400MHZ
      20+70°C1250
      Q22FA23800028FA-23827.000000MHZ20+70°C1850
      Q22FA23800035FA-23820.000000MHZ
      20+70°C1230
      Q22FA23800041FA-23824.000000MHZ20+70°C2050
      Q22FA23800044FA-23824.000000MHZ20+70°C750
      Q22FA23800047FA-23816.000000MHZ20+70°C750
      Q22FA23800048FA-23849.152000MHZ20+70°C1250
      Q22FA23800052FA-23831.000000MHZ20+70°C1250
      Q22FA23800061FA-23824.576000MHZ20+70°C2050
      Q22FA23800063FA-23824.576000MHZ20+70°C1250
      Q22FA23800065FA-23824.000000MHZ20+70°C1250
      Q22FA23800070FA-23822.118400MHZ20+70°C1050
      Q22FA23800075FA-23850.000000MHZ20+70°C1250
      Q22FA23800076FA-23848.000000MHZ20+70°C1050
      Q22FA23800077FA-23828.224000MHZ20+70°C1850
      Q22FA23800078FA-23848.000000MHZ20+70°C1850
      Q22FA23800079FA-23827.000000MHZ20+70°C1050
      Q22FA23800080FA-23818.000000MHZ20+70°C1050
      Q22FA23800084FA-23840.000000MHZ
      20+70°C1250
      Q22FA23800085FA-23848.000000MHZ20+70°C1250
      Q22FA23800088FA-23824.576000MHZ20+70°C1230
      Q22FA23800089FA-23824.000000MHZ20+70°C1650
      Q22FA23800090FA-23833.333000MHZ20+70°C2050
      Q22FA23800091FA-23818.432000MHZ20+70°C2050
      Q22FA23800092FA-23825.000000MHZ20+70°C2050
      Q22FA23800093FA-23818.432000MHZ20+70°C1250
      Q22FA23800098FA-23830.000000MHZ20+70°C1050
      Q22FA23800100FA-23822.118400MHZ
      20+70°C1250
      Q22FA23800103FA-23827.000000MHZ20+70°C1650
      Q22FA23800104FA-23833.000000MHZ20+70°C1250
      Q22FA23800114FA-23824.000000MHZ20+70°C1850
      Q22FA23800117FA-23832.000000MHZ20+70°C1250
      Q22FA23800120FA-23824.576000MHZ20+70°C1850
      Q22FA23800123FA-23822.579000MHZ20+70°C1550
      Q22FA23800127FA-23818.432000MHZ20+70°C1650
      Q22FA23800128FA-23818.432000MHZ20+70°C1850
      Q22FA23800129FA-23822.579000MHZ20+70°C1050
      Q22FA23800133FA-23816.000000MHZ20+70°C1250
      Q22FA23800137FA-23840.000000MHZ20+70°C1850
      Q22FA23800138FA-23827.000000MHZ
      20+70°C850
      Q22FA23800140FA-23848.000000MHZ20+70°C1650
      Q22FA23800141FA-23832.000000MHZ20+70°C1050
      Q22FA23800146FA-23826.000000MHZ20+70°C1050
      Q22FA23800147FA-23826.000000MHZ20+70°C2050
      Q22FA23800148FA-23848.000000MHZ20+70°C1230
      Q22FA23800149FA-23818.432000MHZ20+70°C1050
      Q22FA23800154FA-23816.000000MHZ20+70°C2050
      Q22FA23800156FA-23824.576000MHZ20+70°C1050
      Q22FA23800170FA-23820.000000MHZ20+70°C2050
      Q22FA23800172FA-23819.660800MHZ20+70°C1850
      Q22FA23800174FA-23816.934400MHZ20+70°C1250
      Q22FA23800175FA-23832.256000MHZ20+70°C850
      Q22FA23800179FA-23816.000000MHZ20+70°C12.550
      Q22FA23800190FA-23824.576000MHZ20+70°C850
      Q22FA23800198FA-23824.576000MHZ20+70°C750
      Q22FA23800204FA-23828.375000MHZ20+70°C1650
      Q22FA23800205FA-23819.200000MHZ20+70°C1050
      Q22FA23800216FA-23816.000000MHZ20+70°C1230
      Q22FA23800217FA-23816.670000MHZ20+70°C1250
      Q22FA23800218FA-23836.000000MHZ20+70°C1250
      Q22FA23800221FA-23827.000000MHZ20+70°C9.650
      Q22FA23800222FA-23824.545400MHZ20+70°C1050
      Q22FA23800223FA-23822.000000MHZ20+70°C1230
      Q22FA23800224FA-23849.090900MHZ20+70°C1250
      Q22FA23800238FA-23824.000000MHZ20+70°C2030
      Q22FA23800240FA-23824.0000000MH20+70°C3050
      Q22FA23800244FA-23848.000000MHZ20+70°C2030
      Q22FA23800245FA-23824.000000MHZ20+70°C3030
      Q22FA23800248FA-23822.000000MHZ20+70°C1250
      Q22FA23800250FA-23824.553500MHZ20+70°C1250
      Q22FA23800251FA-23836.864000MHZ20+70°C850
      Q22FA23800252FA-23820.480000MHZ20+70°C1250
      Q22FA23800253FA-23833.000000MHZ20+70°C1850
      Q22FA23800263FA-23816.000000MHZ20+70°C915
      Q22FA23800264FA-23820.000000MHZ20+70°C1050
      Q22FA23800275FA-23839.000000MHZ20+70°C850
      Q22FA23800276FA-23839.000000MHZ20+70°C1050
      Q22FA23800277FA-23819.660800MHZ20+70°C1250
      Q22FA23800282FA-23817.734475MHZ20+70°C2250
      Q22FA23800283FA-23848.600000MHZ20+70°C2250
      Q22FA23800291FA-23827.000000MHZ20+70°C750
      Q22FA23800299FA-23824.545400MHZ20+70°C1630
      Q22FA23800301FA-23825.000000MHZ20+70°C12.550
      Q22FA23800304FA-23824.576000MHZ20+70°C12.550
      Q22FA23800305FA-23824.576000MHZ20+70°C1650
      Q22FA23800312FA-23828.636360MHZ20+70°C1650
      Q22FA23800313FA-23819.312500MHZ20+70°C1650
      Q22FA23800320FA-23820.250000MHZ40+85°C1050
      Q22FA23800322FA-23820.000000MHZ20+70°C12.530
      Q22FA23800329FA-23832.000000MHZ20+70°C1850
      Q22FA23800337FA-23849.090000MHZ
      20+70°C1230
      Q22FA23800338FA-23824.000000MHZ20+70°C1815
      Q22FA23800343FA-23821.200000MHZ20+70°C1850
      Q22FA23800350FA-23820.000000MHZ20+70°C1650
      Q22FA23800353FA-23833.330000MHZ20+70°C1250
      Q22FA23800355FA-23827.000000MHZ20+70°C730
      Q22FA23800356FA-23845.000000MHZ20+70°C1250
      Q22FA23800357FA-23848.600000MHZ20+70°C8.850
      Q22FA23800358FA-23816.000000MHZ20+70°C1030
      Q22FA23800359FA-23838.000000MHZ20+70°C2515
      Q22FA23800360FA-23816.500000MHZ20+70°C1250
      Q22FA23800364FA-23848.000000MHZ
      20+70°C730
      Q22FA23800367FA-23816.000000MHZ20+70°C1850
      Q22FA23800373FA-23829.491200MHZ20+70°C1650
      Q22FA23800383FA-23848.600000MHZ20+70°C750
      Q22FA23800387FA-23818.937500MHZ20+70°C1650
      Q22FA23800404FA-23817.328000MHZ20+70°C3030
      Q22FA23800405FA-23840.000000MHZ20+70°C1050
      Q22FA23800408FA-23819.660800MHZ20+70°C1050
      Q22FA23800412FA-23837.500000MHZ20+70°C2050
      Q22FA23800413FA-23825.000000MHZ20+70°C12.515
      Q22FA23800414FA-23825.576000MHZ20+70°C1250
      Q22FA23800415FA-23827.120000MHZ20+70°C1250
      Q22FA23800419FA-23840.000000MHZ20+70°C750
      Q22FA23800421FA-23816.000000MHZ20+70°C1050
      Q22FA23800423FA-23830.000000MHZ20+70°C1850
      Q22FA23800424FA-23817.734475MHZ20+70°C1250
      Q22FA23800428FA-23816.666600MHZ20+70°C1250
      Q22FA23800432FA-23850.000000MHZ20+70°C1050
      Q22FA23800435FA-23819.200000MHZ20+70°C1650
      Q22FA23800439FA-23833.340000MHZ20+70°C1850
      Q22FA23800441FA-238

      29.500000MHZ

      20+70°C1050
      Q22FA23800443FA-23850.000000MHZ20+70°C2050
      Q22FA23800447FA-23848.000000MHZ20+70°C1030
      Q22FA23800448FA-23850.000000MHZ20+70°C750
      Q22FA23800453FA-23827.000000MHZ20+70°C3050
      Q22FA23800458FA-23816.384000MHZ20+70°C1050
      Q22FA23800460FA-23830.000000MHZ20+70°C1450
      Q22FA23800461FA-23819.069920MHZ20+70°C1250
      Q22FA23800464FA-23833.333000MHZ20+70°C1050
      Q22FA23800476FA-23827.134800MHZ20+70°C1230
      Q22FA23800478FA-23825.000000MHZ20+70°C1830
      Q22FA23800480FA-23827.000000MHZ20+70°C1030
      Q22FA23800481FA-23824.061000MHZ20+70°C1250
      Q22FA23800482FA-23849.090900MHZ20+70°C7.550
      Q22FA23800486FA-23825.000000MHZ20+70°C3050
      Q22FA23800509FA-23824.545000MHZ20+70°C1050
      Q22FA23800518FA-23848.000000MHZ20+70°C950
      Q22FA23800525FA-23817.734475MHZ20+70°C1230
      Q22FA23800540FA-23824.576000MHZ20+70°C2030
      Q22FA23800547FA-23825.000000MHZ20+70°C1630
      Q22FA23800553FA-23830.000000MHZ20+70°C1650
      Q22FA23800558FA-23820.250000MHZ20+70°C1050
      Q22FA23800564FA-23816.666000MHZ20+70°C1850
      Q22FA23800565FA-23836.750000MHZ20+70°C1050
      Q22FA23800572FA-23840.000000MHZ20+70°C850
      Q22FA23800573FA-23848.000000MHZ20+70°C1050
      Q22FA23800587FA-23828.636000MHZ20+70°C1050
      Q22FA23800591FA-23824.000000MHZ20+70°C850
      Q22FA23800592FA-23849.090000MHZ20+70°C2050
      Q22FA23800594FA-23848.000000MHZ20+70°C850
      Q22FA23800599FA-23827.000000MHZ20+70°C1630
      Q22FA23800600FA-23833.000000MHZ20+70°C1630
      Q22FA23800612FA-23844.000000MHZ20+70°C1050
      Q22FA23800619FA-23836.000000MHZ20+70°C1050
      Q22FA23800620FA-23816.000000MHZ20+70°C850
      Q22FA23800622FA-23836.000000MHZ20+70°C730
      Q22FA23800624FA-23849.090900MHZ20+70°C2050
      Q22FA23800627FA-23822.118400MHZ20+70°C1850
      Q22FA23800631FA-23826.000000MHZ20+70°C1850
      Q22FA23800652FA-23836.000000MHZ20+70°C830
      Q22FA23800653FA-23825.000000MHZ20+70°C750
      Q22FA23800654FA-23833.000000MHZ20+70°C1550
      Q22FA23800661FA-23836.000000MHZ20+70°C3630
      Q22FA23800666FA-23818.432000MHZ20+70°C750
      Q22FA23800668FA-23816.666000MHZ20+70°C1050
      Q22FA23800674FA-23819.069930MHZ20+70°C1650
      Q22FA23800675FA-23838.880000MHZ20+70°C1050
      Q22FA23800677FA-23828.375000MHZ20+70°C1050
      Q22FA23800678FA-23825.000000MHZ20+70°C2030
      Q22FA23800682FA-23833.000000MHZ20+70°C1050
      Q22FA23800683FA-23824.545454MHZ20+70°C1050
      Q22FA23800688FA-23817.734475MHZ20+70°C1850
      Q22FA23800699FA-23833.330000MHZ20+70°C1050
      Q22FA23800700FA-23834.000000MHZ20+70°C1850
      Q22FA23800702FA-23816.000000MHZ20+70°C1550
      Q22FA23800704FA-23831.250000MHZ20+70°C1850
      Q22FA23800706FA-23827.000000MHZ20+70°C830
      Q22FA23800715FA-23830.000000MHZ20+70°C9950
      Q22FA23800716FA-23830.000000MHZ20+70°C850
      Q22FA23800729FA-23820.000000MHZ20+70°C750
      Q22FA23800737FA-23824.540000MHZ20+70°C1050
      Q22FA23800743FA-23826.562500MHZ20+70°C1850
      Q22FA23800745FA-23825.000000MHZ20+70°C950
      Q22FA23800747FA-23819.200000MHZ20+70°C1030
      Q22FA23800750FA-23836.810000MHZ20+70°C1050
      Q22FA23800752FA-23830.000000MHZ20+70°C1230
      Q22FA23800753FA-23833.333300MHZ20+70°C1050
      Q22FA23800754FA-23819.000000MHZ20+70°C1250
      Q22FA23800755FA-23819.200000MHZ20+70°C1250
      Q22FA23800756FA-23816.200000MHZ20+70°C1050
      Q22FA23800757FA-23833.750000MHZ20+70°C1030
      Q22FA23800758FA-23836.000000MHZ20+70°C2030
      Q22FA23800759FA-23827.000000MHZ20+70°C930
      Q22FA23800762FA-23820.250000MHZ20+70°C1250
      Q22FA23800767FA-23830.180000MHZ20+70°C1850
      Q22FA23800774FA-23820.875000MHZ20+70°C1050
      Q22FA23800775FA-23824.000000MHZ20+70°C850
      Q22FA23800776FA-23825.000000MHZ20+70°C850
      Q22FA23800778FA-23849.152000MHZ20+70°C2020
      Q22FA23800780FA-23822.118400MHZ20+70°C1650
      Q22FA23800781FA-23839.385000MHZ20+70°C950
      Q22FA23800784FA-23825.500000MHZ20+70°C1050
      Q22FA23800785FA-23833.300000MHZ20+70°C1050
      Q22FA23800791FA-23816.384000MHZ20+70°C1530
      Q22FA23800792FA-23824.576000MHZ20+70°C1030
      Q22FA23800804FA-23840.000000MHZ20+70°C1230
      Q22FA23800807FA-23816.250000MHZ20+70°C1050
      Q22FA23800808FA-23816.590000MHZ20+70°C1050
      Q22FA23800809FA-23816.934400MHZ20+70°C1230
      Q22FA23800810FA-23844.000000MHZ20+70°C1250
      Q22FA23800812FA-23819.900000MHZ20+70°C750
      Q22FA23800817FA-23824.000000MHZ20+70°C1030
      Q22FA23800819FA-23826.000000MHZ20+70°C1030
      Q22FA23800820FA-23818.400000MHZ20+70°C1050
      Q22FA23800826FA-23835.000000MHZ20+70°C1050
      Q22FA23800836FA-23819.069900MHZ
      20+70°C1630
      Q22FA23800837FA-23828.636000MHZ20+70°C1630
      Q22FA23800838FA-23818.937500MHZ20+70°C1630
      Q22FA23800839FA-23828.375000MHZ20+70°C1630
      Q22FA23800840FA-23816.670000MHZ20+70°C1050
      Q22FA23800841FA-23828.636360MHZ20+70°C1050
      Q22FA23800844FA-23825.000000MHZ20+70°C1815
      Q22FA23800846FA-23824.576000MHZ20+70°C950
      Q22FA23800847FA-23826.000000MHZ20+70°C830
      Q22FA23800849FA-23816.384000MHZ20+70°C1230
      Q22FA23800850FA-23824.576000MHZ20+70°C1830
      Q22FA23800852FA-23832.000000MHZ20+70°C1350
      Q22FA23800854FA-23816.500000MHZ20+70°C1050
      Q22FA23800859FA-23832.500000MHZ20+70°C750
      Q22FA23800860FA-23825.000000MHZ20+70°C1950
      Q22FA23800866FA-23820.000000MHZ20+70°C1030
      Q22FA23800876FA-23827.000000MHZ20+70°C9.230
      Q22FA23800877FA-23828.636360MHZ20+70°C1630
      Q22FA23800881FA-23816.666700MHZ20+70°C1050
      Q22FA23800883FA-23820.263800MHZ20+70°C1050
      Q22FA23800886FA-23819.000000MHZ20+70°C1050
      Q22FA23800896FA-23818.432000MHZ20+70°C2030
      Q22FA23800897FA-23816.000000MHZ20+70°C9950
      Q22FA23800898FA-23829.491200MHZ
      20+70°C1030
      Q22FA23800899FA-23816.257000MHZ
      20+70°C1050
      Q22FA23800901FA-23828.000000MHZ20+70°C850
      Q22FA23800903FA-23827.000000MHZ20+70°C12.550
      Q22FA23800904FA-23820.000000MHZ20+70°C2250
      Q22FA23800905FA-23833.333300MHZ20+70°C730
      Q22FA23800909FA-23827.000000MHZ20+70°C2050
      Q22FA23800910FA-23820.000000MHZ20+70°C850
      Q22FA23800911FA-23825.400000MHZ20+70°C750
      Q22FA23800912FA-23827.120000MHZ20+70°C1050
      Q22FA23800915FA-23816.934400MHZ20+70°C1650
      Q22FA23800917FA-23822.700000MHZ20+70°C1050
      Q22FA23800918FA-23828.375000MHZ20+70°C1250
      Q22FA23800919FA-23823.512000MHZ20+70°C1050
      Q22FA23800920FA-23818.432000MHZ20+70°C30
      30
      Q22FA23800924FA-23833.000000MHZ20+70°C750
      Q22FA23800925FA-23834.000000MHZ20+70°C750
      Q22FA23800928FA-23828.636360MHZ20+70°C1230
      Q22FA23800931FA-23828.636360MHZ20+70°C12.550
      Q22FA23800939FA-23833.333300MHZ
      20+70°C750
      Q22FA23800940FA-23827.120000MHZ
      20+70°C1030
      Q22FA23800942FA-23825.000000MHZ20+70°C9950
      Q22FA23800947FA-23824.576000MHZ20+70°C730
      Q22FA23800952FA-23819.200000MHZ20+70°C1850
      Q22FA23800954FA-23820.500000MHZ20+70°C1050
      Q22FA23800957FA-23826.000000MHZ20+70°C1650
      Q22FA23800967FA-23817.250000MHZ20+70°C1450
      Q22FA23800974FA-23825.000000MHZ20+70°C7.550
      Q22FA23800975FA-23830.000000MHZ20+70°C750
      Q22FA23800977FA-23824.576000MHZ20+70°C9.550
      Q22FA23800980FA-23816.000000MHZ20+70°C2250
      Q22FA23800986FA-23825.000000MHZ
      20+70°C3350
      Q22FA23800987FA-23820.000000MHZ20+70°C1550
      Q22FA23800992FA-23822.000000MHZ20+70°C1050
      Q22FA23800994FA-23820.000000MHZ20+70°C12.550
      Q22FA23800997FA-23836.000000MHZ20+70°C1850
      Q22FA23800998FA-23818.000000MHZ20+70°C1850
      Q22FA23801005FA-23816.666600MHZ20+70°C1050
      Q22FA23801016FA-23820.000000MHZ20+70°C1630
      Q22FA23801017FA-23825.000000MHZ20+70°C2550
      Q22FA23801021FA-23825.000000MHZ20+70°C730
      Q22FA23801026FA-23816.384000MHZ20+70°C1850
      Q22FA23801027FA-23816.665000MHZ20+70°C1050
      Q22FA23801029FA-23828.500000MHZ20+70°C1650
      Q22FA23801037FA-23816.000000MHZ20+70°C1450
      Q22FA23801038FA-23820.000000MHZ20+70°C1450
      Q22FA23801039FA-23825.000000MHZ20+70°C1450
      Q22FA23801044FA-23835.328000MHZ20+70°C1050
      Q22FA23801046FA-23848.000000MHZ20+70°C750
      Q22FA23801050FA-23827.000000MHZ20+70°C1230
      Q22FA23801051FA-23838.000000MHZ20+70°C1030
      Q22FA23801053FA-23816.934400MHZ20+70°C1030
      Q22FA23801054FA-23832.000000MHZ20+70°C1030
      Q22FA23801055FA-23840.000000MHZ20+70°C1030
      Q22FA23801056FA-23816.384000MHZ20+70°C1030
      Q22FA23801063FA-23824.576000MHZ20+70°C830
      Q22FA23801066FA-23819.660800MHZ20+70°C750
      Q22FA23801067FA-23822.579200MHZ20+70°C1030
      Q22FA23801071FA-23827.000000MHZ20+70°C2030
      Q22FA23801084FA-23816.660000MHZ20+70°C1650
      Q22FA23801085FA-23833.868800MHZ20+70°C1030
      Q22FA23801087FA-23848.000000MHZ20+70°C1830
      Q22FA23801089FA-23816.423786MHZ20+70°C1050
      Q22FA23801101FA-23827.000000MHZ20+70°C1830
      Q22FA23801103FA-23816.200000MHZ20+70°C750
      Q22FA23801104FA-23816.200000MHZ20+70°C16.250
      Q22FA23801105FA-23816.660000MHZ20+70°C1050
      Q22FA23801121FA-23818.000000MHZ20+70°C1030
      Q22FA23801122FA-23849.152000MHZ10+85°C850
      Q22FA23801128FA-23849.080000MHZ20+70°C1650
      Q22FA23801135FA-23828.636300MHZ20+70°C1650
      Q22FA23801140FA-23816.777210MHZ20+70°C1050
      Q22FA23801141FA-23838.000000MHZ20+70°C730
      Q22FA23801160FA-23818.432000MHZ
      20+70°C1550
      Q22FA23801162FA-23822.579200MHZ20+70°C7.550
      Q22FA23801163FA-23827.120000MHZ20+70°C1850
      Q22FA23801172FA-23824.000000MHZ40+85°C18.550
      Q22FA23801173FA-23824.000000MHZ20+70°C1450
      Q22FA23801175FA-23830.000000MHZ20+70°C950
      Q22FA23801183FA-23816.384000MHZ20+70°C2050
      Q22FA23801186FA-23819.500000MHZ20+70°C1350
      Q22FA23801188FA-23824.000000MHZ40+85°C1230
      Q22FA23801194FA-23824.000000MHZ20+70°C1830
      Q22FA23801201FA-23824.000000MHZ40+85°C1020
      Q22FA23801209FA-23816.667000MHZ20+70°C1050
      Q22FA23801210FA-23826.000000MHZ20+70°C1250
      Q22FA23801224FA-23825.000000MHZ20+70°C850
      Q22FA23801232FA-23818.432000MHZ20+70°C1230
      Q22FA23801234FA-23824.000000MHZ20+70°C730
      Q22FA23801244FA-23827.120000MHZ20+70°C830
      Q22FA23801273FA-23841.600000MHZ40+85°C720
      Q22FA23801278FA-23822.118400MHZ20+70°C950
      Q22FA23801286FA-23816.000000MHZ20+70°C1830
      Q22FA23801302FA-23831.250000MHZ20+70°C1030
      Q22FA23801304FA-23824.576000MHZ20+70°C1630
      Q22FA23801310FA-23825.000000MHZ20+70°C830
      Q22FA23801311FA-23827.648000MHZ20+70°C1050
      Q22FA23801322FA-23826.594200MHZ20+70°C1230
      Q22FA23801335FA-23826.562500MHZ20+70°C830
      Q22FA23801354FA-23816.934400MHZ20+70°C730
      Q22FA23801358FA-23827.000000MHZ20+70°C1230
      Q22FA23801363FA-23827.120000MHZ20+70°C850
      Q22FA23801367FA-23819.069920MHZ20+70°C2030
      Q22FA23801368FA-23828.375000MHZ20+70°C2030
      Q22FA23801369FA-23828.636360MHZ20+70°C2030
      Q22FA23801370FA-23818.375000MHZ20+70°C2030
      Q22FA23801372FA-23818.093750MHZ20+70°C1630
      Q22FA23801381FA-23841.000000MHZ20+70°C750
      Q22FA23801385FA-23825.893100MHZ20+70°C1850
      Q22FA23801396FA-23837.125000MHZ20+70°C1030
      Q22FA23801397FA-23848.450000MHZ20+70°C1030
      Q22FA23801404FA-23825.000000MHZ20+70°C1430
      Q22FA23801406FA-23826.562500MHZ20+70°C1430
      Q22FA23801414FA-23826.000000MHZ20+70°C750
      Q22FA23801416FA-23820.000000MHZ20+70°C2220
      Q22FA23801418FA-23848.000000MHZ40+85°C720
      Q22FA23801428FA-23826.000000MHZ20+70°C1830
      Q22FA23801429FA-23824.000000MHZ20+70°C1630
      Q22FA23801431FA-23830.000000MHZ20+70°C2030
      Q22FA23801434FA-23820.000000MHZ20+70°C715
      Q22FA23801435FA-23824.000000MHZ40+85°C2025
      Q22FA23801438FA-23849.152000MHZ20+70°C950
      Q22FA23801458FA-23824.576000MHZ20+75°C1230
      Q22FA23801474FA-23840.000000MHZ20+75°C850
      Q22FA23801476FA-23833.333000MHZ20+70°C1020
      Q22FA23801477FA-23833.333000MHZ20+70°C720
      Q22FA23801482FA-23816.384000MHZ20+70°C750
      Q22FA23801493FA-23838.400000MHZ20+70°C1050
      Q22FA23801494FA-23827.120000MHZ20+70°C1230
      Q22FA23801499FA-23822.118400MHZ20+70°C1230
      Q22FA23801503FA-23828.636000MHZ20+70°C850
      Q22FA23801506FA-23831.250000MHZ20+70°C1250
      Q22FA23801508FA-23816.777216MHZ40+85°C1050
      Q22FA23801517FA-23819.858490MHZ20+70°C1050
      Q22FA23801529FA-23830.000000MHZ20+70°C750
      Q22FA23801543FA-23830.000000MHZ20+70°C930
      Q22FA23801547FA-23822.480976MHZ20+70°C850
      Q22FA23801551FA-23823.609540MHZ20+70°C1050
      Q22FA23801554FA-23816.000000MHZ20+70°C9930
      Q22FA23801555FA-23818.432000MHZ20+70°C12.550
      Q22FA23801560FA-23833.868800MHZ20+70°C750
      Q22FA23801561FA-23827.120000MHZ40+85°C1230
      Q22FA23801570FA-23824.000000MHZ20+70°C1550
      Q22FA23801574FA-23824.576000MHZ20+70°C2250
      Q22FA23801575FA-23832.000000MHZ40+85°C1250
      Q22FA23801576FA-23832.000000MHZ40+85°C1050
      Q22FA23801583FA-23830.000000MHZ40+85°C730
      Q22FA23801584FA-23816.588800MHZ20+70°C750
      Q22FA23801597FA-23824.000000MHZ20+70°C1050
      Q22FA23801598FA-23825.000000MHZ40+85°C730
      Q22FA23801603FA-23825.000000MHZ40+85°C1030
      Q22FA23801607FA-23848.000000MHZ40+85°C2050
      Q22FA23801624FA-23824.000000MHZ20+70°C1350
      Q22FA23801626FA-23820.000000MHZ40+105°C12.5100
      Q22FA23801631FA-23830.000000MHZ20+70°C3030
      Q22FA23801638FA-23826.832920MHZ20+70°C750
      Q22FA23801651FA-23828.224000MHZ20+70°C1830
      Q22FA23801656FA-23835.000000MHZ20+70°C850
      Q22FA23801664FA-23825.000000MHZ20+70°C2025
      Q22FA23801671FA-23833.333333MHZ20+70°C830
      Q22FA23801672FA-23845.000000MHZ20+70°C750
      Q22FA23801674FA-23816.000000MHZ20+70°C815
      Q22FA23801676FA-23829.637200MHZ20+70°C850
      Q22FA23801677FA-23825.635500MHZ20+70°C850
      Q22FA23801678FA-23825.000000MHZ20+70°C3030
      Q22FA23801679FA-23828.224000MHZ20+70°C3030
      Q22FA23801680FA-23850.000000MHZ20+70°C3030
      Q22FA23801686FA-23825.000000MHZ40+85°C820
      Q22FA23801687FA-23825.000000MHZ40+85°C1850
      Q22FA23801688FA-23830.000000MHZ20+70°C830
      Q22FA23801689FA-23822.579200MHZ20+70°C1650
      Q22FA23801697FA-23824.000000MHZ40+85°C1220
      Q22FA23801698FA-23825.000000MHZ20+70°C12.520
      Q22FA23801699FA-23825.000000MHZ40+85°C1220
      Q22FA23801700FA-23824.000000MHZ20+70°C12.520
      Q22FA23801701FA-23825.000000MHZ40+85°C1230
      Q22FA23801706FA-23820.000000MHZ20+70°C1850
      Q22FA23801707FA-23819.660800MHZ20+70°C1615
      Q22FA23801712FA-23830.000000MHZ40+85°C1230
      Q22FA23801713FA-23852.000000MHZ20+70°C1250
      Q22FA23801718FA-23822.118400MHZ20+70°C1630
      Q22FA23801724FA-23850.000000MHZ20+70°C1830
      Q22FA23801726FA-23840.000000MHZ20+70°C920
      Q22FA23801730FA-23820.480000MHZ20+70°C1830
      Q22FA23801735FA-23849.152000MHZ20+70°C1020
      Q22FA23801742FA-23828.224000MHZ20+70°C850
      Q22FA23801746FA-23824.000000MHZ20+70°C12.550
      Q22FA23801748FA-23827.000000MHZ20+70°C1020
      Q22FA23801749FA-23840.000000MHZ20+70°C1650
      Q22FA23801750FA-23828.636300MHZ20+70°C750
      Q22FA23801751FA-23827.120000MHZ20+70°C950
      Q22FA23801754FA-23826.000000MHZ20+70°C1830
      Q22FA23801755FA-23824.000000MHZ20+70°C830
      Q22FA23801757FA-23825.000000MHZ20+70°C1430
      Q22FA23801760FA-23820.500000MHZ20+70°C750
      Q22FA23801761FA-23827.000000MHZ20+70°C750
      Q22FA23801762FA-23825.000000MHZ20+70°C750
      Q22FA23801763FA-23820.000000MHZ20+70°C750
      Q22FA23801766FA-23820.000000MHZ20+70°C2050
      Q22FA23801767FA-23820.500000MHZ20+70°C2050
      Q22FA23801768FA-23825.000000MHZ20+70°C2050
      Q22FA23801769FA-23827.000000MHZ20+70°C2050
      Q22FA23801770FA-23819.576458MHZ
      20+70°C1550
      Q22FA23801772FA-23832.000000MHZ20+70°C850
      Q22FA23801774FA-23827.120000MHZ20+70°C1830
      Q22FA23801777FA-23816.384000MHZ20+70°C820
      Q22FA23801778FA-23818.750000MHZ20+70°C1015
      Q22FA23801781FA-23824.576000MHZ20+70°C1225
      Q22FA23801782FA-23827.000000MHZ20+70°C1520
      Q22FA23801785FA-23822.118400MHZ20+70°C1030
      Q22FA23801786FA-23816.384000MHZ20+70°C850
      Q22FA23801787FA-23850.000000MHZ30+80°C1230
      Q22FA23801797FA-23850.000000MHZ40+85°C820

      爱普生晶振简介:

       爱普生(中国)有限公司成立于1998年,总部设在北京,负责统括爱普生在中国的投资和业务拓展。2004年5月,爱普生(中国)有限公司经中国商务部批准,成为中国首家获得“地区总部”资格认定的外商独资企业。目前,爱普生在华累计投资已超过8.22亿美元(约合50亿元人民币),共有14家制造、销售及服务等机构,员工逾18,000人。

      爱普生在中国开展的业务主要有打印机、扫描仪、投影机等信息关联产品业务,电子元器件业务以及工业自动化设备业务。其产品以卓越的品质和节能环保的特点,赢得了中国消费者的厚爱。立足于中国市场,爱普生始终本着“挑战与创新”理念,不断将一系列先进技术及应用方案引入中国,从而使中国消费者能够与世界同步,享受创新科技带来的完美体验。爱普生不断贡献于中国的环保和教育事业,作为一名优秀的中国企业公民而倍感自豪。企业官网请访问:http://www.xtal.cc



      深圳市加科晶体电子有限公司

      联系人.jpg联系人:黄河 15602443498

      座机.jpg 座机:0755-33533774

      邮箱 邮箱jiakedz@163.com

      QQ QQ3080074590

      定位 地址:深圳市宝安区13区宝民一路白金大厦13F

       网址:http://www.xtal.cc

      * 表示必填采购:FA-238
      * 联系人: 请填写您的真实姓名
      公司名称: 请填写您的公司名称
      联系电话:
      * 手机号码: 请填写您的联系电话
      电子邮件:
      联系地址:
      * 采购意向描述:
      请填写采购的产品数量和产品描述,方便我们进行统一备货。
      验证码: 验证码
      SG-3030JF
      SG-3030JF
      特征:
      频率范围:32.768 kHz
      外部尺寸规格 :7.1 × 5.1 × 1.5 mm
      C-MOS IC 的使用可降低功耗
      应用:数字消费类电子产品,PC/PC外围设备, 其他、微型电脑应用子CLK
      SG-3030LC
      SG-3030LC
      特征:
      频率范围:32.768 kHz
      外部尺寸规格 :3.6 × 2.8 × 1.2 mm
      C-MOS IC 的使用可降低功耗
      应用:数字消费类电子产品,PC/PC外围设备, 其他、微型电脑应用子CLK
      VCX95
      VCX95
      特征:
      尺寸(5.0×3.2×1.1)
      ceramic SMD封装
      seam密封
      low电流consumption and
      CMOS输出wide抽放
      set机顶盒/ MPEG / ADSL传输/频率

      相关资讯

      我要评论:
      内 容:
      (内容最多500个汉字,1000个字符)
      验证码: 看不清?!


      联系加科晶体Contact

      咨询热线:0755-33533774

      传真:0755-33533774

      QQ:3080074590

      邮箱:jiakedz@163.com

      地址:深圳市宝安区宝民一路123号3号楼13F

      加科首页晶振用途批发中心技术与服务成功案例客户见证加科资讯网站地图
