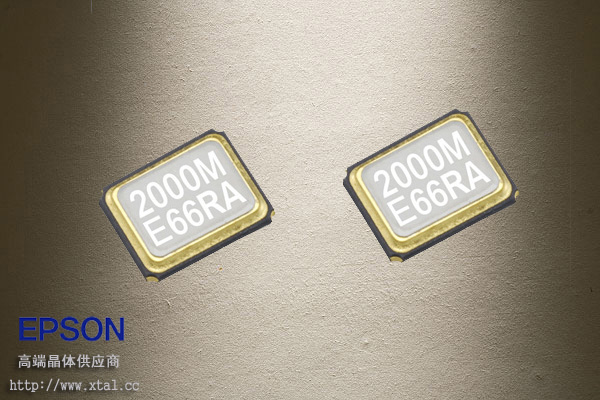

石英振荡器

FA-238V

产品分类: EPSON晶振
    频率范围:12.000MHz ~ 15.999MHz
    外部尺寸规格:3.2 × 2.5 × 0.7mm
    谐波次数:基频
    应用
    :移动电话,蓝牙,无线-局域网ISM 频段电台广播,MPU时钟等
    订购热线:0755-33533774

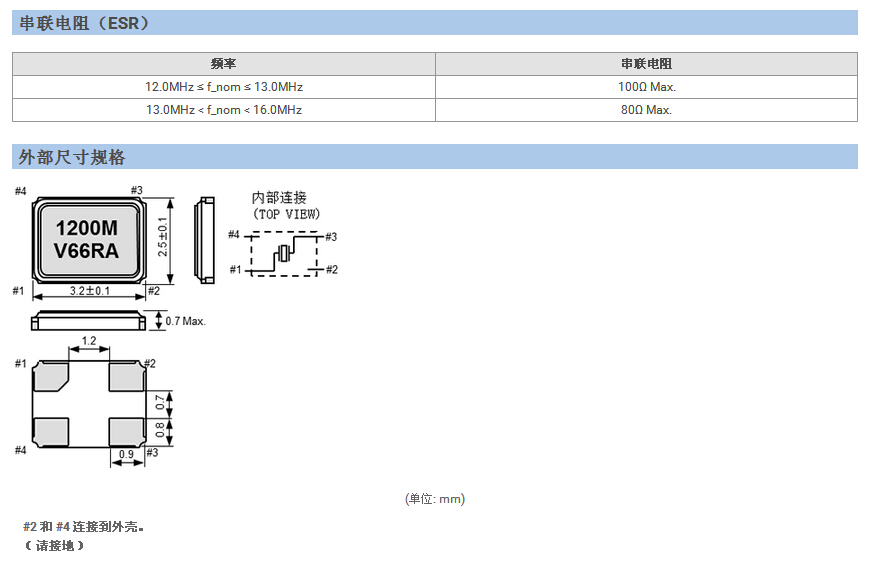

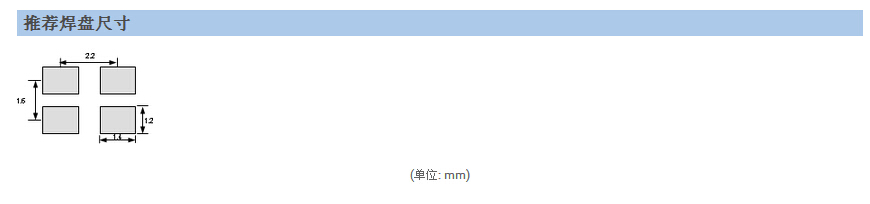

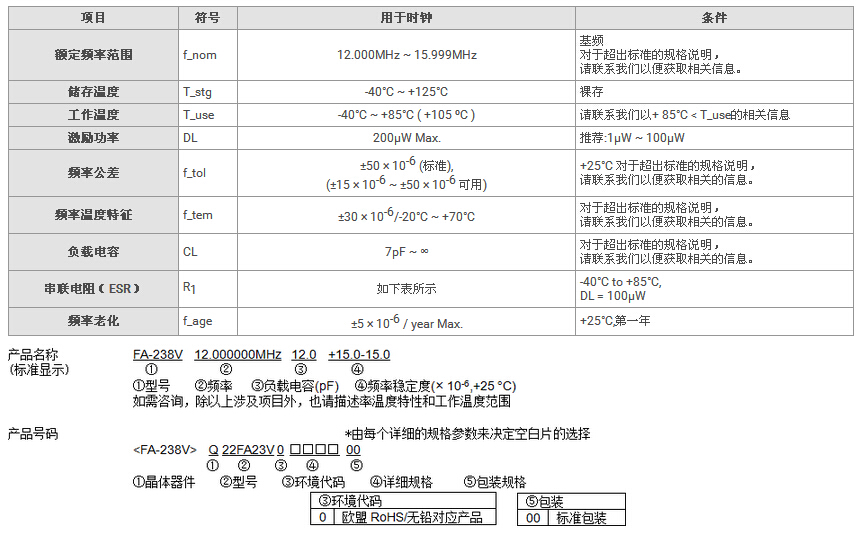

      FA-238V晶振规格书

      FA-238V晶振规格书

      FA-238V晶振规格书

      爱普生FA-238V同系列晶振型号有:

      产品代号型号频率工作温度负载电容PF精度PPM
      Q22FA23V00007FA-238V12.000000MHZ
      20+70°C1250
      Q22FA23V00012FA-238V13.560000MHZ40+80°C1250
      Q22FA23V00016FA-238V14.318180MHZ20+70°C1050
      Q22FA23V00019FA-238V12.000000MHZ20+70°C1050
      Q22FA23V00022FA-238V12.000000MHZ20+70°C1030
      Q22FA23V00023FA-238V13.500000MHZ20+70°C1030
      Q22FA23V00026FA-238V13.000000MHZ20+70°C1050
      Q22FA23V00027FA-238V14.745600MHZ20+70°C2050
      Q22FA23V00028FA-238V12.000000MHZ20+70°C1550
      Q22FA23V00029FA-238V13.000000MHZ20+70°C2050
      Q22FA23V00030FA-238V13.000000MHZ20+60°C2030
      Q22FA23V00033FA-238V12.288000MHZ20+70°C1230
      Q22FA23V00037FA-238V14.318180MHZ20+70°C2050
      Q22FA23V00044FA-238V12.000000MHZ20+70°C2050
      Q22FA23V00047FA-238V13.500000MHZ20+70°C1050
      Q22FA23V00048FA-238V13.000000MHZ20+70°C750
      Q22FA23V00052FA-238V13.560000MHZ20+70°C1050
      Q22FA23V00058FA-238V14.318180MHZ20+70°C1630
      Q22FA23V00068FA-238V14.318000MHZ20+70°C1250
      Q22FA23V00081FA-238V13.000000MHZ20+70°C1350
      Q22FA23V00082FA-238V14.318180MHZ20+70°C1650
      Q22FA23V00085FA-238V12.288000MHZ20+70°C850
      Q22FA23V00086FA-238V14.745600MHZ20+70°C1250
      Q22FA23V00089FA-238V13.000000MHZ20+70°C1030
      Q22FA23V00095FA-238V12.000000MHZ20+70°C1650
      Q22FA23V00097FA-238V14.318180MHZ20+70°C1030
      Q22FA23V00103FA-238V14.318180MHZ20+70°C12.530
      Q22FA23V00106FA-238V12.000000MHZ20+70°C1130
      Q22FA23V00114FA-238V14.318180MHZ20+70°C1850
      Q22FA23V00119FA-238V12.500000MHZ20+70°C1650
      Q22FA23V00125FA-238V12.000000MHZ20+70°C1150
      Q22FA23V00131FA-238V12.000000MHZ20+70°C1850
      Q22FA23V00136FA-238V12.000000MHZ20+70°C850
      Q22FA23V00137FA-238V14.745600MHZ20+70°C1050
      Q22FA23V00146FA-238V13.000000MHZ20+70°C850
      Q22FA23V00148FA-238V13.000000MHZ20+70°C1850
      Q22FA23V00149FA-238V12.000000MHZ20+70°C2030
      Q22FA23V00160FA-238V12.000000MHZ20+70°C1630
      Q22FA23V00162FA-238V12.288000MHZ20+70°C1050
      Q22FA23V00164FA-238V14.318180MHZ20+70°C950
      Q22FA23V00170FA-238V12.000000MHZ20+70°C1230
      Q22FA23V00174FA-238V15.304533MHZ20+70°C1050
      Q22FA23V00178FA-238V13.560000MHZ20+70°C1850
      Q22FA23V00179FA-238V12.500000MHZ20+70°C1050
      Q22FA23V00180FA-238V14.745600MHZ20+70°C1650
      Q22FA23V00181FA-238V14.000000MHZ20+70°C1050
      Q22FA23V00192FA-238V12.288000MHZ20+70°C1030
      Q22FA23V00193FA-238V12.000000MHZ20+70°C12.550
      Q22FA23V00195FA-238V13.000000MHZ40+85°C920
      Q22FA23V00205FA-238V14.745600MHZ20+70°C850
      Q22FA23V00210FA-238V14.745600MHZ20+70°C1850
      Q22FA23V00214FA-238V12.288000MHZ20+70°C1630
      Q22FA23V00229FA-238V14.318180MHZ20+70°C1250
      Q22FA23V00235FA-238V12.000000MHZ20+70°C930
      Q22FA23V00239FA-238V14.318000MHZ20+70°C1050
      Q22FA23V00245FA-238V14.318000MHZ20+70°C1650
      Q22FA23V00265FA-238V14.318180MHZ
      20+70°C2030
      Q22FA23V00266FA-238V13.560000MHZ
      20+70°C1650
      Q22FA23V00268FA-238V12.288000MHZ20+70°C1650
      Q22FA23V00279FA-238V12.000000MHZ20+70°C1830
      Q22FA23V00291FA-238V14.318180MHZ40+85°C1215
      Q22FA23V00307FA-238V14.318180MHZ20+70°C830
      Q22FA23V00309FA-238V14.318180MHZ20+70°C3350
      Q22FA23V00310FA-238V14.318000MHZ20+70°C2030
      Q22FA23V00316FA-238V13.000000MHZ20+70°C2030
      Q22FA23V00332FA-238V14.745600MHZ
      20+70°C1830
      Q22FA23V00334FA-238V12.272700MHZ20+70°C1050
      Q22FA23V00337FA-238V15.000000MHZ20+70°C1250
      Q22FA23V00341FA-238V13.000000MHZ20+70°C950
      Q22FA23V00342FA-238V14.318180MHZ20+70°C930
      Q22FA23V00361FA-238V14.770800MHZ20+70°C1050
      Q22FA23V00372FA-238V12.288000MHZ40+85°C1820
      Q22FA23V00373FA-238V14.745600MHZ40+85°C1650
      Q22FA23V00374FA-238V13.560000MHZ20+70°C950
      Q22FA23V00375FA-238V12.800000MHZ20+70°C1510
      Q22FA23V00379FA-238V13.300000MHZ20+70°C1050
      Q22FA23V00385FA-238V12.800000MHZ20+75°C1510
      Q22FA23V00396FA-238V14.745600MHZ20+75°C750
      Q22FA23V00397FA-238V14.318180MHZ20+70°C1230
      Q22FA23V00405FA-238V12.000000MHZ
      20+70°C1630
      Q22FA23V00426FA-238V14.745600MHZ40+85°C1050
      Q22FA23V00432FA-238V12.000000MHZ20+70°C2250
      Q22FA23V00434FA-238V12.800000MHZ20+70°C1550
      Q22FA23V00437FA-238V12.300000MHZ40+85°C1050
      Q22FA23V00439FA-238V12.000000MHZ
      40+85°C1850
      Q22FA23V00441FA-238V12.288000MHZ20+70°C1220
      Q22FA23V00451FA-238V12.288000MHZ40+85°C1050
      Q22FA23V00452FA-238V12.000000MHZ20+70°C750
      Q22FA23V00460FA-238V13.312000MHZ20+70°C730
      Q22FA23V00465FA-238V14.318000MHZ20+70°C3350
      Q22FA23V00467FA-238V12.500000MHZ20+70°C1630
      Q22FA23V00471FA-238V13.500000MHZ20+70°C1230
      Q22FA23V00486FA-238V14.745600MHZ20+70°C1030
      Q22FA23V00491FA-238V13.500000MHZ20+70°C1010
      Q22FA23V00492FA-238V12.000000MHZ20+70°C1820
      Q22FA23V00498FA-238V13.333000MHZ20+70°C1250
