石英振荡器

MA-406

产品分类: EPSON晶振
    频率范围:4MHz~64MHz 外部尺寸规格:11.7 × 4.8 × 3.7mm
    谐波次数
    :基频:三次谐波(30MHz~64MHz)
    应用:用于集成电路的时钟
    订购热线:0755-33533774

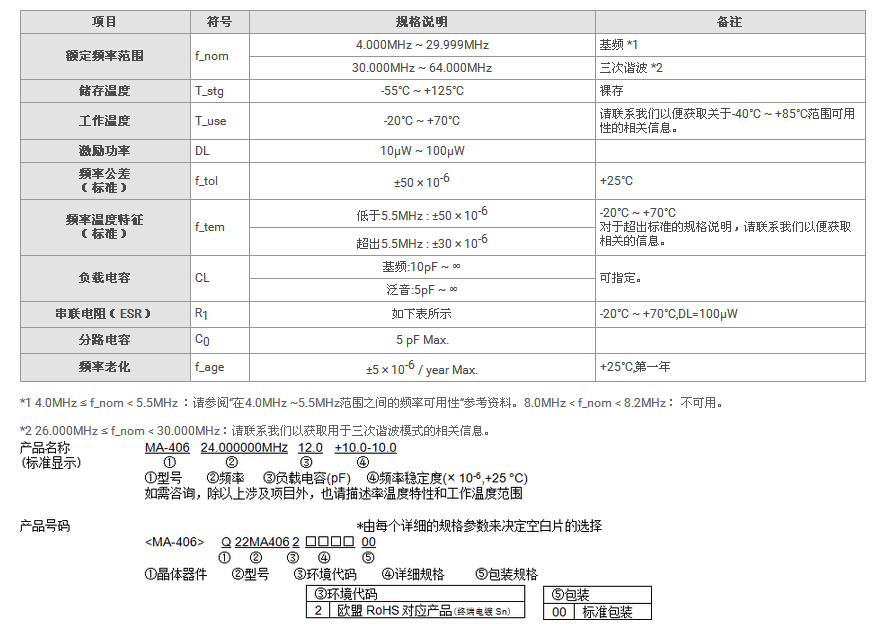

      MA-406晶振规格书

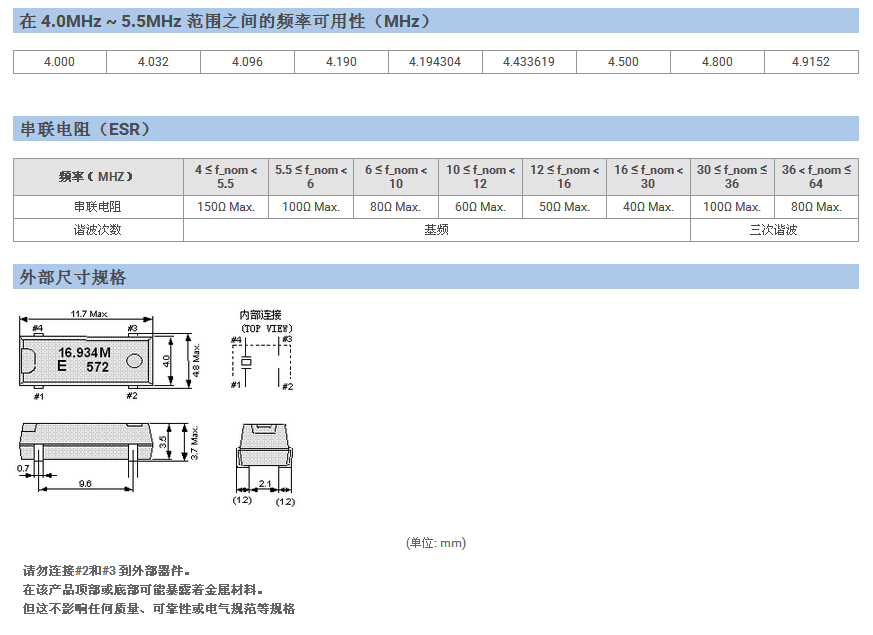

      MA-406晶振规格书

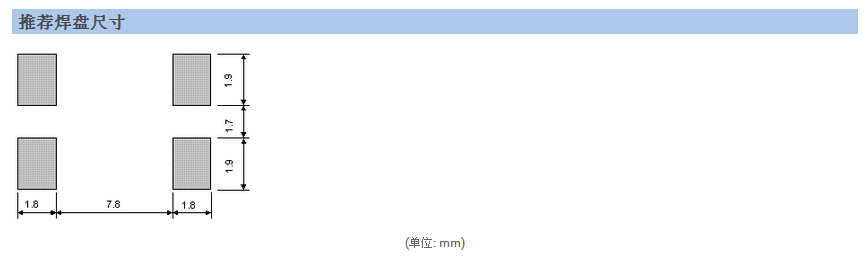

      MA-406晶振规格书

      爱普生MA-406同系列晶振型号有:

      产品代号型号频率工作温度负载电容PF 精度PPM
      Q22MA40610001MA-4064.000000MHZ
      -20°C+70°C1050
      Q22MA40610004MA-4064.000000MHZ-20°C+70°C1250
      Q22MA40610005MA-4064.000000MHZ-20°C+70°C12.550
      Q22MA40610007MA-4064.000000MHZ-20°C+70°C1650
      Q22MA40610008MA-4064.000000MHZ-20°C+70°C1850
      Q22MA40610009MA-4064.000000MHZ-20°C+70°C20100
      Q22MA40610010MA-4064.000000MHZ
      -20°C+70°C2050
      Q22MA40610011MA-4064.000000MHZ-20°C+70°C2250
      Q22MA40610014MA-4064.000000MHZ-20°C+70°C3050
      Q22MA40610017MA-4064.032000MHZ-20°C+70°C1650
      Q22MA40610020MA-4064.096000MHZ-20°C+70°C1250
      Q22MA40610022MA-4064.096000MHZ-20°C+70°C1850
      Q22MA40610023MA-4064.096000MHZ-20°C+70°C2050
      Q22MA40610025MA-4064.190000MHZ-20°C+70°C1650
      Q22MA40610029MA-4064.194304MHZ-20°C+70°C1850
      Q22MA40610030MA-4064.194304MHZ-20°C+70°C3050
      Q22MA40610031MA-4064.194304MHZ-20°C+70°C3250
      Q22MA40610032MA-4064.194304MHZ-20°C+70°C7100
      Q22MA40610033MA-4064.433619MHZ-20°C+70°C1650
      Q22MA40610034MA-4064.500000MHZ-20°C+70°C1650
      Q22MA40610037MA-4064.915200MHZ-20°C+70°C12.550
      Q22MA40610038MA-4064.915200MHZ-20°C+70°C1650
      Q22MA40610040MA-4064.915200MHZ-20°C+70°C2050
      Q22MA40610042MA-4064.915200MHZ-20°C+70°C3050
      Q22MA40610046MA-4065.529000MHZ-20°C+70°C1650
      Q22MA40610052MA-4065.734000MHZ-20°C+70°C1650
      Q22MA40610053MA-4066.000000MHZ-20°C+70°C1050
      Q22MA40610054MA-4066.000000MHZ-20°C+70°C1650
      Q22MA40610055MA-4066.000000MHZ-20°C+70°C1850
      Q22MA40610056MA-4066.000000MHZ-20°C+70°C2050
      Q22MA40610060MA-4066.144000MHZ-20°C+70°C1050
      Q22MA40610061MA-4066.144000MHZ-20°C+70°C1650
      Q22MA40610062MA-4066.144000MHZ-20°C+70°C1850
      Q22MA40610064MA-4066.144000MHZ-20°C+70°C3050
      Q22MA40610065MA-4066.144000MHZ-20°C+70°C9.550
      Q22MA40610068MA-4066.220800MHZ-20°C+70°C1650
      Q22MA40610069MA-4066.250000MHZ-20°C+70°C1650
      Q22MA40610072MA-4066.400000MHZ-20°C+70°C1650
      Q22MA40610081MA-4066.553600MHZ
      -20°C+70°C1650
      Q22MA40610086MA-4066.745800MHZ-20°C+70°C1650
      Q22MA40610089MA-4066.758400MHZ-20°C+70°C1650
      Q22MA40610098MA-4067.000000MHZ-20°C+70°C1050
      Q22MA40610099MA-4067.000000MHZ-20°C+70°C1650
      Q22MA40610100MA-4067.056000MHZ-20°C+70°C1650
      Q22MA40610103MA-4067.159090MHZ-20°C+70°C1650
      Q22MA40610110MA-4067.370000MHZ-20°C+70°C1650
      Q22MA40610112MA-4067.372800MHZ-20°C+70°C1050
      Q22MA40610113MA-4067.372800MHZ-20°C+70°C10.5
      50
      Q22MA40610115MA-4067.372800MHZ-20°C+70°C12.550
      Q22MA40610122MA-4067.372800MHZ-20°C+70°C1850
      Q22MA40610127MA-4067.372800MHZ-20°C+70°C3050
      Q22MA40610131MA-4067.500000MHZ-20°C+70°C1050
      Q22MA40610132MA-4067.500000MHZ-20°C+70°C1650
      Q22MA40610133MA-4067.600000MHZ-20°C+70°C1650
      Q22MA40610134MA-4067.680000MHZ-20°C+70°C1050
      Q22MA40610139MA-4067.987200MHZ
      -20°C+70°C1150
      Q22MA40610140MA-4068.000000MHZ-20°C+70°C1050
      Q22MA40610142MA-4068.000000MHZ-20°C+70°C12.550
      Q22MA40610143MA-4068.000000MHZ-20°C+70°C1550
      Q22MA40610146MA-4068.000000MHZ-20°C+70°C1650
      Q22MA40610148MA-4068.000000MHZ-20°C+70°C1850
      Q22MA40610154MA-4068.000000MHZ-20°C+70°C2250
      Q22MA40610156MA-4068.000000MHZ-20°C+70°C3050
      Q22MA40610161MA-4068.250000MHZ-20°C+70°C1050
      Q22MA40610163MA-4068.250000MHZ-20°C+70°C1650
      Q22MA40610166MA-4068.294400MHZ-20°C+70°C1650
      Q22MA40610168MA-4068.300000MHZ-20°C+70°C1650
      Q22MA40610170MA-4068.388600MHZ-20°C+70°C1650
      Q22MA40610171MA-4068.388608MHZ-20°C+70°C1650
      Q22MA40610177MA-4069.000000MHZ-20°C+70°C1650
      Q22MA40610179MA-4069.216000MHZ-20°C+70°C1250
      Q22MA40610183MA-4069.216000MHZ-20°C+70°C1650
      Q22MA40610184MA-4069.216000MHZ-20°C+70°C3050
      Q22MA40610189MA-4069.600000MHZ-20°C+70°C1650
      Q22MA40610193MA-4069.830400MHZ-20°C+70°C1050
      Q22MA40610196MA-4069.830400MHZ-20°C+70°C1550
      Q22MA40610198MA-4069.830400MHZ-20°C+70°C1650
      Q22MA40610205MA-40610.000000MHZ-20°C+70°C1050
      Q22MA40610208MA-40610.000000MHZ-20°C+70°C1250
      Q22MA40610209MA-40610.000000MHZ-20°C+70°C12.550
      Q22MA40610213MA-40610.000000MHZ-20°C+70°C1650
      Q22MA40610215MA-40610.000000MHZ-20°C+70°C1850
      Q22MA40610217MA-40610.000000MHZ-20°C+70°C2050
      Q22MA40610218MA-40610.000000MHZ-20°C+70°C2250
      Q22MA40610219MA-40610.000000MHZ-20°C+70°C3050
      Q22MA40610221MA-40610.000000MHZ-20°C+70°C3220
      Q22MA40610227MA-40610.240000MHZ-20°C+70°C1650
      Q22MA40610228MA-40610.240000MHZ-20°C+70°C9.550
      Q22MA40610234MA-40610.368000MHZ-20°C+70°C1650
      Q22MA40610238MA-40610.485760MHZ-20°C+70°C1850
      Q22MA40610239MA-40610.700000MHZ
      -20°C+70°C2050
      Q22MA40610242MA-40611.000000MHZ-20°C+70°C2050
      Q22MA40610244MA-40611.059200MHZ-20°C+70°C1050
      Q22MA40610248MA-40611.059200MHZ-20°C+70°C1850
      Q22MA40610250MA-40611.059200MHZ-20°C+70°C2050
      Q22MA40610252MA-40611.059200MHZ-20°C+70°C30
      50
      Q22MA40610254MA-40611.059200MHZ-20°C+70°C750
      Q22MA40610256MA-40611.289600MHZ-20°C+70°C1050
      Q22MA40610259MA-40611.289600MHZ-20°C+70°C1650
      Q22MA40610270MA-40612.000000MHZ
      -20°C+70°C1050
      Q22MA40610271MA-40612.000000MHZ-20°C+70°C1250
      Q22MA40610272MA-40612.000000MHZ-20°C+70°C12.550
      Q22MA40610280MA-40612.000000MHZ-20°C+70°C2050
      Q22MA40610281MA-40612.000000MHZ-20°C+70°C3050
      Q22MA40610288MA-40612.288000MHZ-20°C+70°C1050
      Q22MA40610292MA-40612.288000MHZ-20°C+70°C1650
      Q22MA40610294MA-40612.288000MHZ-20°C+70°C2050
      Q22MA40610296MA-40612.352000MHZ-20°C+70°C1650
      Q22MA40610298MA-40612.500000MHZ-20°C+70°C1050
      Q22MA40610298MA-40612.800000MHZ-20°C+70°C1650
      Q22MA40610304MA-40613.000000MHZ-20°C+70°C1050
      Q22MA40610309MA-40613.000000MHZ-20°C+70°C1650
      Q22MA40610309MA-40613.107200MHZ-20°C+70°C1650
      Q22MA40610314MA-40613.312000MHZ-20°C+70°C1650
      Q22MA40610316MA-40613.500000MHZ
      -20°C+70°C1650
      Q22MA40610318MA-40613.560000MHZ-20°C+70°C1050
      Q22MA40610320MA-40613.560000MHZ-20°C+70°C1650
      Q22MA40610334MA-40614.318000MHZ-20°C+70°C1650
      Q22MA40610335MA-40614.318000MHZ-20°C+70°C1850
      Q22MA40610342MA-40614.318000MHZ-20°C+70°C1050
      Q22MA40610346MA-40614.318180MHZ-20°C+70°C11.550
      Q22MA40610350MA-40614.318180MHZ-20°C+70°C1250
      Q22MA40610352MA-40614.318180MHZ-20°C+70°C13.550
      Q22MA40610360MA-40614.318180MHZ-20°C+70°C1850
      Q22MA40610363MA-40614.318180MHZ-20°C+70°C2050
      Q22MA40610364MA-40614.318180MHZ-20°C+70°C3050
      Q22MA40610367MA-40614.318180MHZ-20°C+70°C6.250
      Q22MA40610368MA-40614.318180MHZ-20°C+70°C6.550
      Q22MA40610375MA-40614.463800MHZ-20°C+70°C1650
      Q22MA40610386MA-40614.745600MHZ-20°C+70°C1050
      Q22MA40610388MA-40614.745600MHZ-20°C+70°C1550
      Q22MA40610391MA-40614.745600MHZ-20°C+70°C1650
      Q22MA40610392MA-40614.745600MHZ-20°C+70°C1850
      Q22MA40610393MA-40614.745600MHZ-20°C+70°C2050
      Q22MA40610394MA-40614.745600MHZ-20°C+70°C3050
      Q22MA40610400MA-40615.000000MHZ-20°C+70°C1650
      Q22MA40610410MA-40615.360000MHZ-20°C+70°C1850
      Q22MA40610412MA-40615.360000MHZ-20°C+70°C2050
      Q22MA40610414MA-40615.360000MHZ-20°C+70°C3050
      Q22MA40610419MA-40615.974400MHZ-20°C+70°C1650
      Q22MA40610425MA-40616.000000MHZ
      -20°C+70°C10.550
      Q22MA40610427MA-40616.000000MHZ-20°C+70°C1150
      Q22MA40610428MA-40616.000000MHZ-20°C+70°C1250
      Q22MA40610429MA-40616.000000MHZ-20°C+70°C12.550
      Q22MA40610442MA-40616.000000MHZ-20°C+70°C1850
      Q22MA40610443MA-40616.000000MHZ-20°C+70°C2050
      Q22MA40610450MA-40616.000000MHZ-20°C+70°C3050
      Q22MA40610452MA-40616.000000MHZ-20°C+70°C750
      Q22MA40610453MA-40616.000000MHZ-20°C+70°C9950
      Q22MA40610457MA-40616.085000MHZ-20°C+70°C1650
      Q22MA40610458MA-40616.128000MHZ-20°C+70°C1650
      Q22MA40610460MA-40616.128000MHZ-20°C+70°C3050
      Q22MA40610464MA-40616.384000MHZ-20°C+70°C1050
      Q22MA40610467MA-40616.384000MHZ-20°C+70°C1650
      Q22MA40610476MA-40616.588800MHZ-20°C+70°C12.550
      Q22MA40610479MA-40616.600000MHZ
      -20°C+70°C1650
      Q22MA40610480MA-40616.611000MHZ-20°C+70°C1650
      Q22MA40610486MA-40616.667000MHZ-20°C+70°C1650
      Q22MA40610488MA-40616.670000MHZ-20°C+70°C1650
      Q22MA40610490MA-40616.934400MHZ-20°C+70°C12.550
      Q22MA40610492MA-40616.934400MHZ-20°C+70°C1050
      Q22MA40610494MA-40616.934400MHZ-20°C+70°C1650
      Q22MA40610497MA-40616.934400MHZ-20°C+70°C2050
      Q22MA40610504MA-40617.177600MHZ-20°C+70°C3050
      Q22MA40610505MA-40617.203200MHZ-20°C+70°C1650
      Q22MA40610508MA-40617.500000MHZ-20°C+70°C1650
      Q22MA40610511MA-40617.734475MHZ-20°C+70°C1650
      Q22MA40610522MA-40618.291200MHZ-20°C+70°C1650
      Q22MA40610527MA-40618.432000MHZ-20°C+70°C1050
      Q22MA40610532MA-40618.432000MHZ-20°C+70°C2050
      Q22MA40610533MA-40618.432000MHZ-20°C+70°C30
      50
      Q22MA40610536MA-40618.750000MHZ-20°C+70°C1650
      Q22MA40610542MA-40619.200000MHZ-20°C+70°C1650
      Q22MA40610547MA-40619.660800MHZ-20°C+70°C1250
      Q22MA40610553MA-40619.660800MHZ-20°C+70°C2250
      Q22MA40610554MA-40619.660800MHZ-20°C+70°C3050
      Q22MA40610555MA-40619.660800MHZ-20°C+70°C9.550
      Q22MA40610558MA-40619.850000MHZ-20°C+70°C1650
      Q22MA40610559MA-40619.968000MHZ-20°C+70°C1650
      Q22MA40610564MA-40620.000000MHZ
      -20°C+70°C10.550
      Q22MA40610566MA-40620.000000MHZ-20°C+70°C1250
      Q22MA40610568MA-40620.000000MHZ-20°C+70°C12.550
      Q22MA40610570MA-40620.000000MHZ-20°C+70°C1450
      Q22MA40610581MA-40620.000000MHZ-20°C+70°C1850
      Q22MA40610583MA-40620.000000MHZ-20°C+70°C2050
      Q22MA40610584MA-40620.000000MHZ-20°C+70°C2250
      Q22MA40610588MA-40620.000000MHZ-20°C+70°C750
      Q22MA40610589MA-40620.000000MHZ-20°C+70°C850
      Q22MA40610592MA-40620.250000MHZ-20°C+70°C1650
      Q22MA40610593MA-40620.480000MHZ-20°C+70°C1050
      Q22MA40610594MA-40620.480000MHZ-20°C+70°C1650
      Q22MA40610602MA-40621.576000MHZ-20°C+70°C1650
      Q22MA40610605MA-40622.000000MHZ-20°C+70°C850
      Q22MA40610608MA-40622.118000MHZ-20°C+70°C1650
      Q22MA40610611MA-40622.118400MHZ-20°C+70°C1650
      Q22MA40610613MA-40622.118400MHZ-20°C+70°C1850
      Q22MA40610614MA-40622.118400MHZ-20°C+70°C2050
      Q22MA40610616MA-40622.118400MHZ-20°C+70°C3050
      Q22MA40610623MA-40622.579200MHZ-20°C+70°C1050
      Q22MA40610632MA-40623.961600MHZ-20°C+70°C1250
      Q22MA40610636MA-40624.000000MHZ-20°C+70°C1050
      Q22MA40610638MA-40624.000000MHZ-20°C+70°C1250
      Q22MA40610640MA-40624.000000MHZ-20°C+70°C1650
      Q22MA40610641MA-40624.000000MHZ-20°C+70°C1850
      Q22MA40610643MA-40624.000000MHZ-20°C+70°C2050
      Q22MA40610644MA-40624.000000MHZ-20°C+70°C3050
      Q22MA40610648MA-40624.300000MHZ-20°C+70°C1650
      Q22MA40610655MA-40624.576000MHZ-20°C+70°C10
      50
      Q22MA40610656MA-40624.576000MHZ-20°C+70°C10.550
      Q22MA40610657MA-40624.576000MHZ-20°C+70°C1250
      Q22MA40610660MA-40624.576000MHZ-20°C+70°C1850
      Q22MA40610661MA-40624.576000MHZ-20°C+70°C2050
      Q22MA40610663MA-40624.576000MHZ-20°C+70°C3050
      Q22MA40610668MA-40625.000000MHZ-20°C+70°C1050
      Q22MA40610670MA-40625.000000MHZ-20°C+70°C1250
      Q22MA40610671MA-40625.000000MHZ-20°C+70°C12.550
      Q22MA40610680MA-40625.000000MHZ-20°C+70°C2250
      Q22MA40610682MA-40625.000000MHZ-20°C+70°C3050
      Q22MA40610683MA-40625.000000MHZ-20°C+70°C4.550
      Q22MA40610688MA-40625.175000MHZ-20°C+70°C1650
      Q22MA40610689MA-40625.175000MHZ-20°C+70°C750
      Q22MA40610694MA-40626.000000MHZ-20°C+70°C1650
      Q22MA40610695MA-40626.800000MHZ-20°C+70°C1650
      Q22MA40610703MA-40627.000000MHZ-20°C+70°C1250
      Q22MA40610704MA-40627.000000MHZ
      -20°C+70°C1650
      Q22MA40610705MA-40627.000000MHZ-20°C+70°C1850
      Q22MA40610707MA-40627.000000MHZ-20°C+70°C950
      Q22MA40610746MA-40628.636360MHz-20°C+70°C16
      50
      Q22MA40610777MA-40630.000000MHZ
      -20°C+70°C1050
      Q22MA40610793MA-40632.000000MHZ
      -20°C+70°C2050
      Q22MA40610838MA-40640.000000MHZ-20°C+70°C1050
      Q22MA40610889MA-40650.000000MHZ-20°C+70°C2050
      Q22MA40610907MA-40660.000000MHZ-20°C+70°C1050



      深圳市加科电子有限公司

      联系人.jpg联系人:黄河 15602443498

      座机.jpg 座机:0755-33533774

      邮箱 邮箱jiakedz@163.com

      QQ QQ3080074590

      定位 地址:深圳市宝安区13区宝民一路白金大厦13F

       网址:https://www.xtal.cc

      * 表示必填采购:MA-406
      * 联系人: 请填写您的真实姓名
      公司名称: 请填写您的公司名称
      联系电话:
      * 手机号码: 请填写您的联系电话
      电子邮件:
      联系地址:
      * 采购意向描述:
      请填写采购的产品数量和产品描述,方便我们进行统一备货。
      验证码: 验证码

      相关资讯

      我要评论:
      内 容:
      (内容最多500个汉字,1000个字符)
      验证码: 看不清?!


      联系加科电子Contact

      咨询热线:0755-33533774

      传真:0755-33533774

      QQ:3080074590

      邮箱:jiakedz@163.com

      地址:深圳市宝安区宝民一路123号3号楼13F

      加科首页晶振用途批发中心技术与服务成功案例客户见证加科资讯网站地图
