石英振荡器

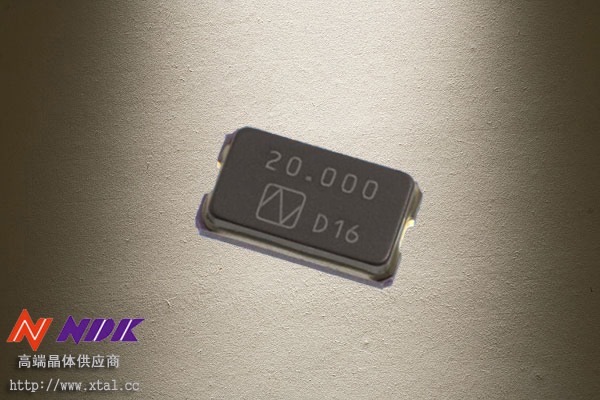

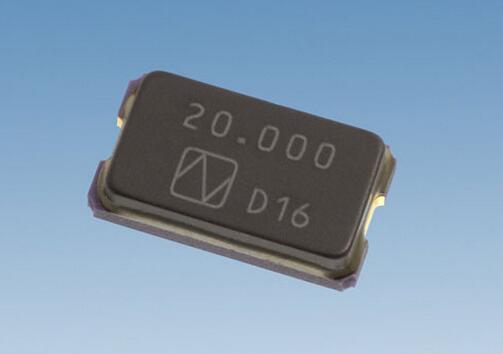

NX5032GA

产品分类: NDK晶振
    特征:
    最适用于汽车配件和录像、音响器件的基准时钟源。
    小型、薄型 (5.0×3.2×1.3mm typ.)。
    可对应8MHz以上的频率。
    具有优良的耐环境特性,如耐热性、耐振性
    满足无铅焊接的回流温度曲线要求
    订购热线:0755-33533774
    VCX95
    VCX95
    特征:
    尺寸(5.0×3.2×1.1)
    ceramic SMD封装
    seam密封
    low电流consumption and
    CMOS输出wide抽放
    set机顶盒/ MPEG / ADSL传输/频率
    SCV-3225
    SCV-3225
    特征: 小型陶瓷封装/ 尺寸(3.2 - 2.5 - 0.9) 拉拔范围广低电流消耗数字电视调谐器/数字视频/ DVD / DSC
    STV-3225
    STV-3225
    特征:
    超薄/尺寸(3.2×2.5×0.9)
    接缝密封低相位噪声/低功耗
    高稳定性±2.5ppm / 40 + 85℃℃~
    应用:手机/小灵通/ GPS通讯器材

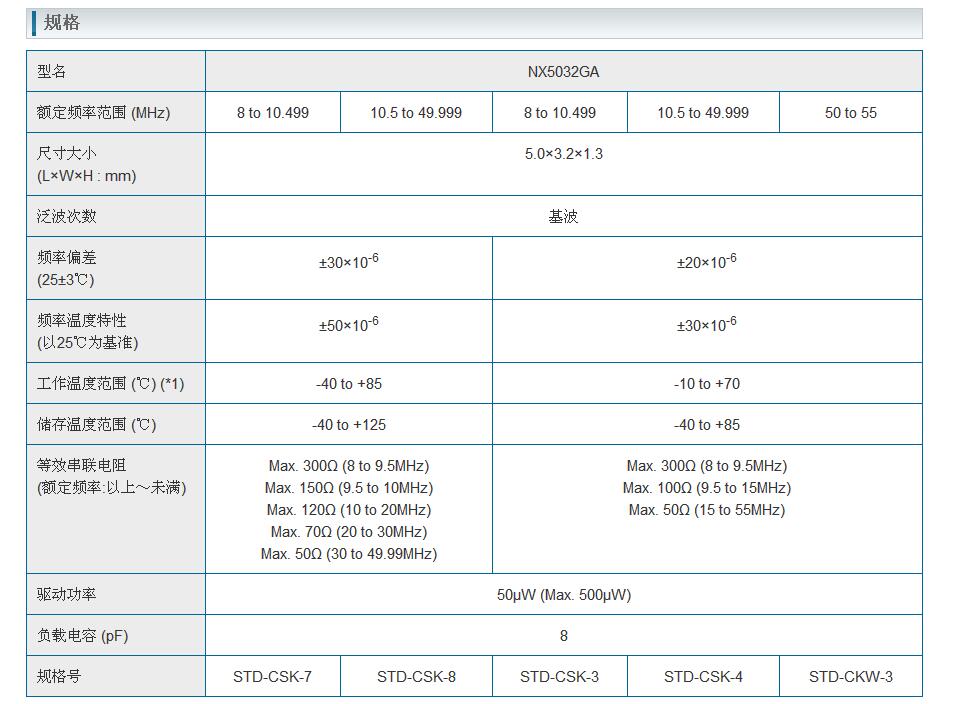

      CX5032GA晶振规格书

      CX5032GA晶振规格书

      汽车级温度:

      产品代号型号频率温度负载电容精度PPM
      NX5032GA-8.000M-STD-CSU-1NX5032GA8.000000MHz-40°C+150°C 8150PPM
      NX5032GA-9.84375M-STD-CSU-1NX5032GA9.843750MHz-40°C+150°C 8150PPM
      NX5032GA-10.000M-STD-CSU-1NX5032GA10.000000MHz-40°C+150°C 8150PPM
      NX5032GA-12.000M-STD-CSU-2NX5032GA12.000000MHz-40°C+150°C 8150PPM
      NX5032GA-13.560M-STD-CSU-2NX5032GA13.560000MHz-40°C+150°C 8150PPM
      NX5032GA-14.000M-STD-CSU-2NX5032GA14.000000MHz-40°C+150°C 8150PPM
      NX5032GA-15.000M-STD-CSU-2NX5032GA15.000000MHz-40°C+150°C 8150PPM
      NX5032GA-16.000M-STD-CSU-2NX5032GA16.000000MHz-40°C+150°C 8150PPM
      NX5032GA-18.000M-STD-CSU-2NX5032GA18.000000MHz-40°C+150°C 8150PPM
      NX5032GA-20.000M-STD-CSU-2NX5032GA20.000000MHz-40°C+150°C 8150PPM
      NX5032GA-25.000M-STD-CSU-2NX5032GA25.000000MHz-40°C+150°C 8150PPM
      NX5032GA-30.000M-STD-CSU-2NX5032GA30.000000MHz-40°C+150°C 8150PPM
      NX5032GA-40.000M-STD-CSU-2NX5032GA40.000000MHz-40°C+150°C 8150PPM

      工业级温度:

      产品代号型号频率温度负载电容PF精度PPM
      NX5032GA-8.000M-STD-CSK-8NX5032GA8.000000MHz-40°C+85°C850PPM
      NX5032GA-11.0592M-STD-CSK-8NX5032GA11.059200MHz-40°C+85°C850PPM
      NX5032GA-12.000M-STD-CSK-8NX5032GA12.000000MHz-40°C+85°C850PPM
      NX5032GA-13.560M-STD-CSK-8NX5032GA13.560000MHz-40°C+85°C850PPM
      NX5032GA-14.7456M-STD-CSK-8NX5032GA14.745600MHz-40°C+85°C850PPM
      NX5032GA-16.000M-STD-CSK-8NX5032GA16.000000MHz-40°C+85°C850PPM
      NX5032GA-16.384M-STD-CSK-8NX5032GA16.384000MHz-40°C+85°C850PPM
      NX5032GA-18.000M-STD-CSK-8NX5032GA18.000000MHz-40°C+85°C850PPM
      NX5032GA-20.000M-STD-CSK-8NX5032GA20.000000MHz-40°C+85°C850PPM
      NX5032GA-22.5792M-STD-CSK-8NX5032GA22.579200MHz-40°C+85°C850PPM
      NX5032GA-24.000M-STD-CSK-8NX5032GA24.000000MHz-40°C+85°C850PPM
      NX5032GA-24.576M-STD-CSK-8NX5032GA24.576000MHz-40°C+85°C850PPM
      NX5032GA-25.000M-STD-CSK-8NX5032GA25.000000MHz-40°C+85°C850PPM
      NX5032GA-27.000M-STD-CSK-8NX5032GA27.000000MHz-40°C+85°C850PPM
      NX5032GA-27.120M-STD-CSK-8NX5032GA27.120000MHz-40°C+85°C850PPM
      NX5032GA-30.000M-STD-CSK-8NX5032GA30.000000MHz-40°C+85°C850PPM
      NX5032GA-40.000M-STD-CSK-8NX5032GA40.000000MHz-40°C+85°C850PPM
      NX5032GA-48.000M-STD-CSK-8NX5032GA48.000000MHz-40°C+85°C850PPM

      NX5032GA

      民用级温度:

      产品代号型号频率
      温度负载电容精度PPM
      NX5032GA-8.000M-STD-CSK-3NX5032GA8.000000MHz-10°C+70°C830PPM
      NX5032GA-9.000M-STD-CSK-3NX5032GA9.000000MHz-10°C+70°C830PPM
      NX5032GA-9.216M-STD-CSK-3NX5032GA9.216000MHz-10°C+70°C830PPM
      NX5032GA-9.5192M-STD-CSK-3NX5032GA9.519200MHz-10°C+70°C830PPM
      NX5032GA-9.8304M-STD-CSK-3NX5032GA9.830400MHz-10°C+70°C830PPM
      NX5032GA-9.84375M-STD-CSK-3NX5032GA9.843750MHz-10°C+70°C830PPM
      NX5032GA-10.000M-STD-CSK-3NX5032GA10.000000MHz-10°C+70°C830PPM
      NX5032GA-10.178125M-STD-CSK-3NX5032GA10.178125MHz-10°C+70°C830PPM
      NX5032GA-11.0592M-STD-CSK-4NX5032GA11.059200MHz-10°C+70°C830PPM
      NX5032GA-11.2896M-STD-CSK-4NX5032GA11.289600MHz-10°C+70°C830PPM
      NX5032GA-12.000M-STD-CSK-4NX5032GA12.000000MHz-10°C+70°C830PPM
      NX5032GA-12.288M-STD-CSK-4NX5032GA12.288000MHz-10°C+70°C830PPM
      NX5032GA-13.000M-STD-CSK-4NX5032GA13.000000MHz-10°C+70°C830PPM
      NX5032GA-13.560M-STD-CSK-4NX5032GA13.560000MHz-10°C+70°C830PPM
      NX5032GA-13.824M-STD-CSK-4NX5032GA13.824000MHz-10°C+70°C830PPM
      NX5032GA-14.31818M-STD-CSK-4NX5032GA14.318180MHz-10°C+70°C830PPM
      NX5032GA-14.7456M-STD-CSK-4NX5032GA14.745600MHz-10°C+70°C830PPM
      NX5032GA-16.000M-STD-CSK-4NX5032GA16.000000MHz-10°C+70°C830PPM
      NX5032GA-16.384M-STD-CSK-4NX5032GA16.384000MHz-10°C+70°C830PPM
      NX5032GA-16.6667M-STD-CSK-4NX5032GA16.666700MHz-10°C+70°C830PPM
      NX5032GA-16.9344M-STD-CSK-4NX5032GA16.934400MHz-10°C+70°C830PPM
      NX5032GA-18.000M-STD-CSK-4NX5032GA

      18.000000MHz

      -10°C+70°C830PPM
      NX5032GA-19.200M-STD-CSK-4NX5032GA19.200000MHz-10°C+70°C830PPM
      NX5032GA-20.000M-STD-CSK-4NX5032GA20.000000MHz-10°C+70°C830PPM
      NX5032GA-22.1184M-STD-CSK-4NX5032GA22.118400MHz-10°C+70°C830PPM
      NX5032GA-22.5792M-STD-CSK-4NX5032GA22.579200MHz-10°C+70°C830PPM
      NX5032GA-24.000M-STD-CSK-4NX5032GA24.000000MHz-10°C+70°C830PPM
      NX5032GA-24.576M-STD-CSK-4NX5032GA24.576000MHz-10°C+70°C830PPM
      NX5032GA-25.000M-STD-CSK-4NX5032GA25.000000MHz-10°C+70°C830PPM
      NX5032GA-27.000M-STD-CSK-4NX5032GA27.000000MHz-10°C+70°C830PPM
      NX5032GA-27.120M-STD-CSK-4NX5032GA27.120000MHz-10°C+70°C830PPM
      NX5032GA-28.63636M-STD-CSK-4NX5032GA28.636360MHz-10°C+70°C830PPM
      NX5032GA-29.4912M-STD-CSK-4NX5032GA29.491200MHz-10°C+70°C830PPM
      NX5032GA-30.000M-STD-CSK-4NX5032GA30.000000MHz-10°C+70°C830PPM
      NX5032GA-38.400M-STD-CSK-4NX5032GA38.400000MHz-10°C+70°C830PPM
      NX5032GA-40.000M-STD-CSK-4NX5032GA40.000000MHz-10°C+70°C830PPM
      NX5032GA-48.000M-STD-CSK-4NX5032GA48.000000MHz-10°C+70°C830PPM
      NX5032GA-49.152M-STD-CSK-4NX5032GA49.152000MHz-10°C+70°C830PPM
      NX5032GA-50.000M-STD-CKW-3NX5032GA50.000000MHz-10°C+70°C830PPM
      NX5032GA-54.000M-STD-CKW-3NX5032GA54.000000MHz-10°C+70°C830PPM
